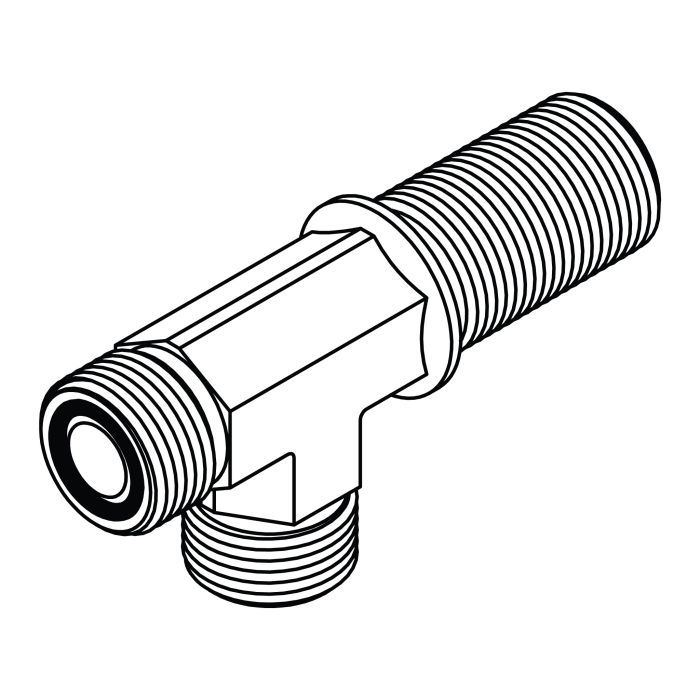

FS2704-12-12-12 ORFS Bulkhead Union Run Tee

FS2704-12-12-12 ORFS Bulkhead Union Run Tee | Steel Hydraulic Fitting

The FS2704-12-12-12 ORFS Bulkhead Union Run Tee is a heavy-duty hydraulic fitting designed for in-line fluid distribution and branch routing through bulkhead panels, hydraulic manifolds, and industrial hydraulic systems. It connects three 1-3/16-12 UNF (Size 12) Male O-Ring Face Seal (ORFS) ports, ensuring a secure, leak-free connection in high-pressure hydraulic applications.

Manufactured from high-strength steel and engineered to meet SAE 520958 standards, this run tee delivers excellent durability, corrosion resistance, and long service life in demanding industrial, construction, agricultural, and mobile hydraulic environments. The ORFS flat-face O-ring sealing system ensures superior leak prevention under vibration, pressure fluctuations, and continuous operation.

Specifications

• Part Number: FS2704-12-12-12
• Material: Steel
• Shape: Tee (Run Tee / Bulkhead Style)
• Thread 1 Type: Male O-Ring Face Seal (ORFS)
• Thread 1 Nominal Size: 12
• Thread 1 Size: 1-3/16-12 UNF
• Thread 2 Type: Male O-Ring Face Seal (ORFS)
• Thread 2 Nominal Size: 12
• Thread 2 Size: 1-3/16-12 UNF
• Thread 3 Type: Male O-Ring Face Seal (ORFS)
• Thread 3 Nominal Size: 12
• Thread 3 Size: 1-3/16-12 UNF
• Standard Compliance: SAE 520958
