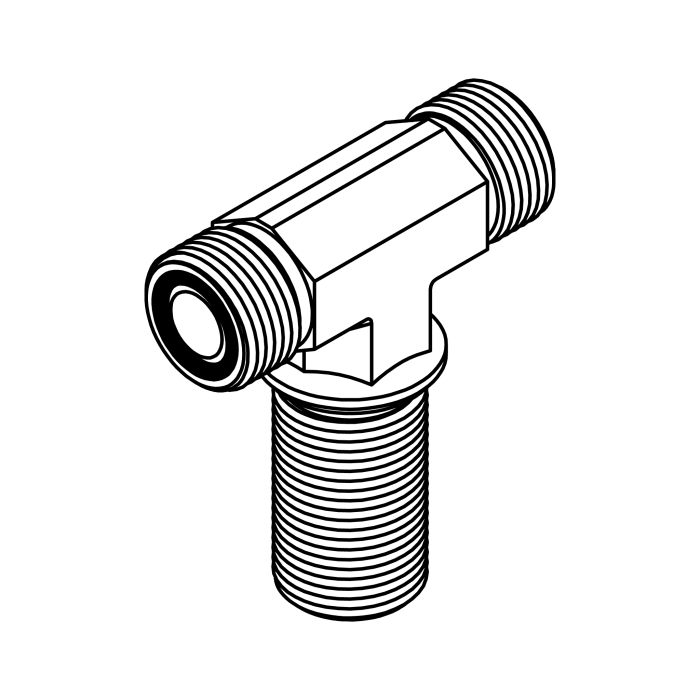

FS2703-12-12-12 ORFS Bulkhead Union Branch Tee

FS2703-12-12-12 ORFS Bulkhead Union Branch Tee | Steel Hydraulic Fitting

The FS2703-12-12-12 ORFS Bulkhead Union Branch Tee is a heavy-duty hydraulic fitting designed for three-way fluid distribution through bulkhead panels, hydraulic manifolds, and industrial fluid systems. It connects three 1-3/16-12 UNF (Size 12) Male O-Ring Face Seal (ORFS) ports, providing a secure, leak-free connection in high-pressure hydraulic applications.

Manufactured from high-strength steel and engineered to meet SAE 520959 standards, this branch tee delivers excellent durability, corrosion resistance, and long service life in demanding industrial, construction, agricultural, and mobile hydraulic environments. The ORFS flat-face O-ring sealing system ensures superior leak prevention under vibration, pressure surges, and continuous operation.

Specifications

• Part Number: FS2703-12-12-12
• Material: Steel
• Shape: Tee (Branch Tee / Bulkhead Style)
• Thread 1 Type: Male O-Ring Face Seal (ORFS)
• Thread 1 Nominal Size: 12
• Thread 1 Size: 1-3/16-12 UNF
• Thread 2 Type: Male O-Ring Face Seal (ORFS)
• Thread 2 Nominal Size: 12
• Thread 2 Size: 1-3/16-12 UNF
• Thread 3 Type: Male O-Ring Face Seal (ORFS)
• Thread 3 Nominal Size: 12
• Thread 3 Size: 1-3/16-12 UNF
• Standard Compliance: SAE 520959
