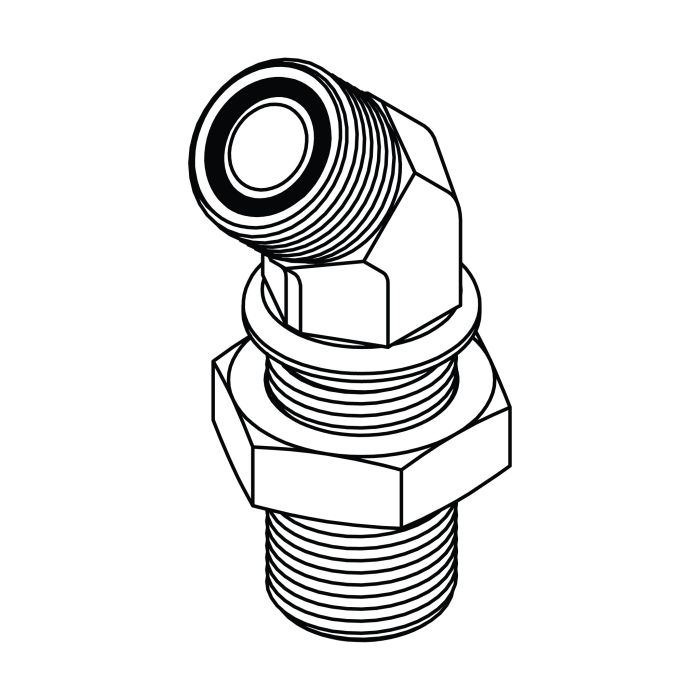

FS2702-LN-10-10 ORFS Bulkhead Union 45° with Locknut

FS2702-LN-10-10 ORFS Bulkhead Union 45° with Locknut | Steel Hydraulic Fitting

The FS2702-LN-10-10 ORFS Bulkhead Union 45° with Locknut is a robust hydraulic fitting designed for efficient 45-degree fluid line routing through panels, bulkheads, and hydraulic enclosures. It connects two 5/8" (1-14 UNF) Male O-Ring Face Seal (ORFS) ports, ensuring a secure, leak-free connection in medium to high-pressure hydraulic systems.

The integrated locknut provides rigid and vibration-resistant mounting on equipment panels or structural frames, helping maintain alignment under heavy-duty operating conditions. Manufactured from high-strength steel and built to meet SAE 520801 standards, this fitting delivers long service life, excellent corrosion resistance, and reliable performance in demanding industrial, agricultural, and mobile hydraulic systems. The ORFS flat-face O-ring sealing system ensures dependable sealing even under pressure spikes, shock loads, and continuous vibration.

Specifications

• Part Number: FS2702-LN-10-10
• Material: Steel
• Shape: 45° Bulkhead Elbow with Locknut
• Thread 1 Type: Male O-Ring Face Seal (ORFS)
• Thread 1 Nominal Size: 10
• Thread 1 Size: 1-14 UNF
• Thread 2 Type: Male O-Ring Face Seal (ORFS)
• Thread 2 Nominal Size: 10
• Thread 2 Size: 1-14 UNF
• Standard Compliance: SAE 520801
