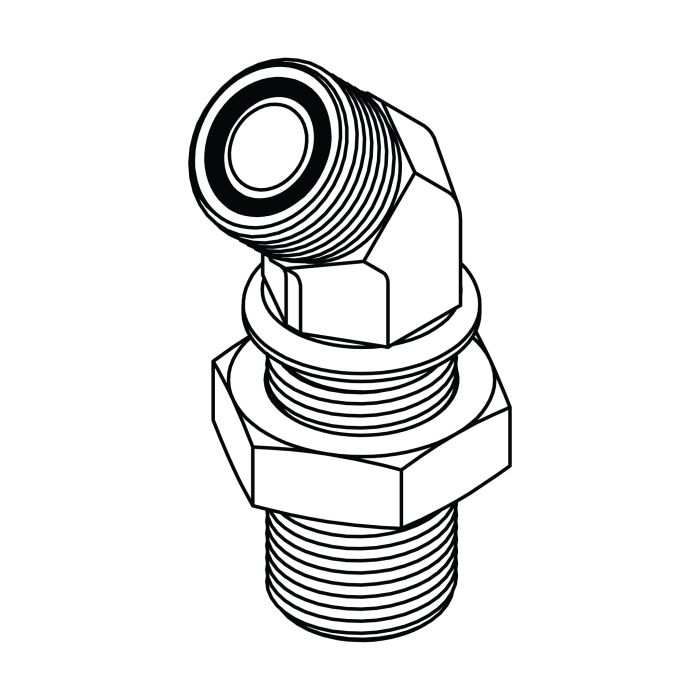

FS2702-LN-04-04 ORFS Bulkhead Union 45° with Locknut

FS2702-LN-04-04 ORFS Bulkhead Union 45° with Locknut | Steel Hydraulic Fitting

The FS2702-LN-04-04 ORFS Bulkhead Union 45° with Locknut is a compact, high-performance hydraulic fitting designed for secure 45-degree line routing through panels and bulkheads. It connects two 1/4" (9/16-18 UNF) Male O-Ring Face Seal (ORFS) ports, providing a reliable, leak-free hydraulic connection in tight and high-pressure hydraulic systems.

This version includes an integrated locknut, ensuring strong and vibration-resistant mounting on machine panels or structural frames. Manufactured from high-strength steel and compliant with SAE 520801 standards, it delivers excellent durability, corrosion resistance, and long service life in demanding industrial, agricultural, and mobile applications. The ORFS flat-face O-ring sealing system ensures superior leak protection even under pressure spikes, vibration, and continuous operation.

Specifications

• Part Number: FS2702-LN-04-04
• Material: Steel
• Shape: 45° Bulkhead Elbow with Locknut
• Thread 1 Type: Male O-Ring Face Seal (ORFS)
• Thread 1 Nominal Size: 04
• Thread 1 Size: 9/16-18 UNF
• Thread 2 Type: Male O-Ring Face Seal (ORFS)
• Thread 2 Nominal Size: 04
• Thread 2 Size: 9/16-18 UNF
• Standard Compliance: SAE 520801
