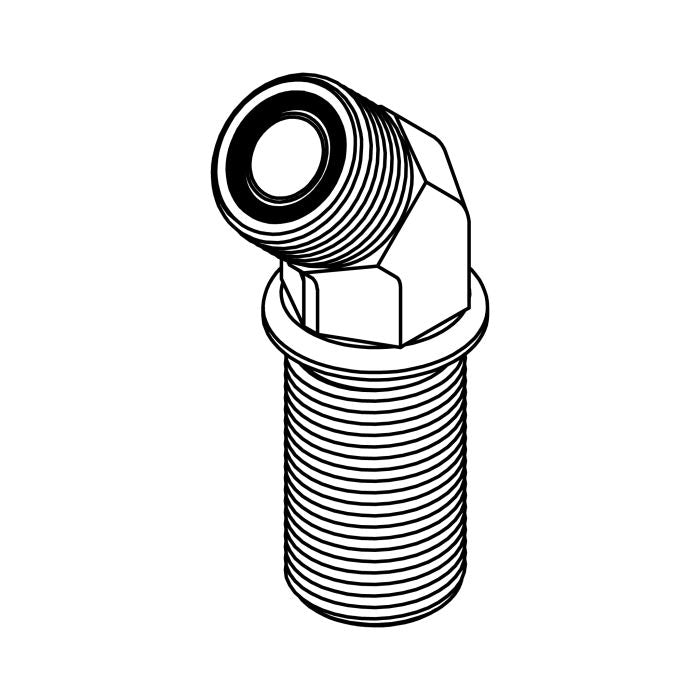

FS2702-06-06 ORFS Bulkhead Union 45°

FS2702-06-06 ORFS Bulkhead Union 45° | Steel Hydraulic Fitting

The FS2702-06-06 ORFS Bulkhead Union 45° is a compact and durable hydraulic fitting designed for smooth 45-degree line routing through panels, bulkheads, and hydraulic enclosures. It connects two 3/8" (11/16-16 UNF) Male O-Ring Face Seal (ORFS) ports, providing a secure, leak-free hydraulic connection in medium-pressure systems.

Built from high-strength steel and manufactured to SAE 520801 standards, this 45° bulkhead elbow is engineered for long service life, vibration resistance, and dependable performance in demanding hydraulic environments. The ORFS flat-face O-ring sealing system ensures excellent leak protection, even under pressure fluctuations, shock loads, and continuous operation.

Specifications

• Part Number: FS2702-06-06
• Material: Steel
• Shape: 45° Bulkhead Elbow
• Thread 1 Type: Male O-Ring Face Seal (ORFS)
• Thread 1 Nominal Size: 06
• Thread 1 Size: 11/16-16 UNF
• Thread 2 Type: Male O-Ring Face Seal (ORFS)
• Thread 2 Nominal Size: 06
• Thread 2 Size: 11/16-16 UNF
• Standard Compliance: SAE 520801
