FS2702-04-04 ORFS Bulkhead Union 45°

FS2702-04-04 ORFS Bulkhead Union 45° | Steel Hydraulic Fitting

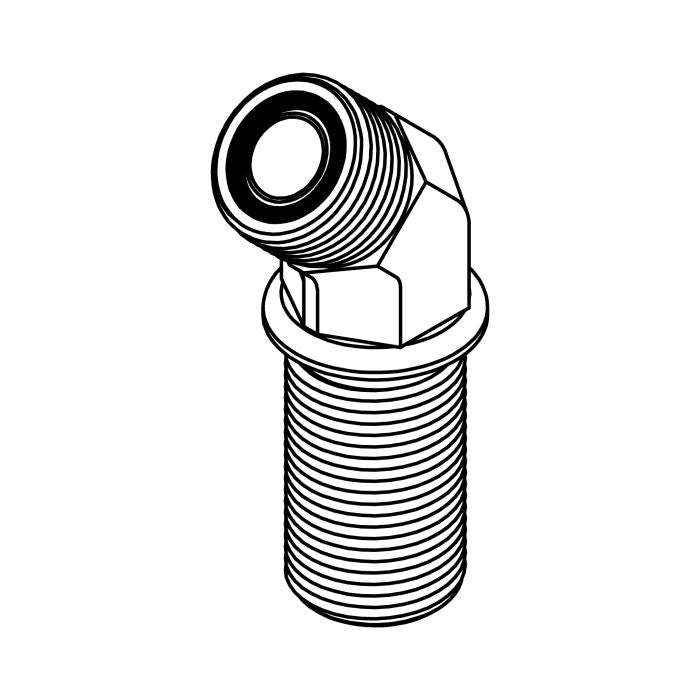

The FS2702-04-04 ORFS Bulkhead Union 45° is a compact hydraulic fitting designed to provide a secure 45-degree directional connection through panels, bulkheads, and hydraulic enclosures. It connects two 1/4" (9/16-18 UNF) Male O-Ring Face Seal (ORFS) ports, allowing efficient hydraulic line routing while maintaining a reliable, leak-free seal in high-pressure systems.

Manufactured from high-strength steel and built to meet SAE 520801 standards, this 45° bulkhead elbow is engineered for durability, vibration resistance, and long service life in demanding hydraulic applications. The ORFS flat-face O-ring sealing system ensures excellent leak protection, making it ideal for systems exposed to pressure fluctuations, shock loads, and continuous operation.

Specifications

• Part Number: FS2702-04-04
• Material: Steel
• Shape: 45° Bulkhead Elbow
• Thread 1 Type: Male O-Ring Face Seal (ORFS)
• Thread 1 Nominal Size: 04
• Thread 1 Size: 9/16-18 UNF
• Thread 2 Type: Male O-Ring Face Seal (ORFS)
• Thread 2 Nominal Size: 04
• Thread 2 Size: 9/16-18 UNF
• Standard Compliance: SAE 520801
