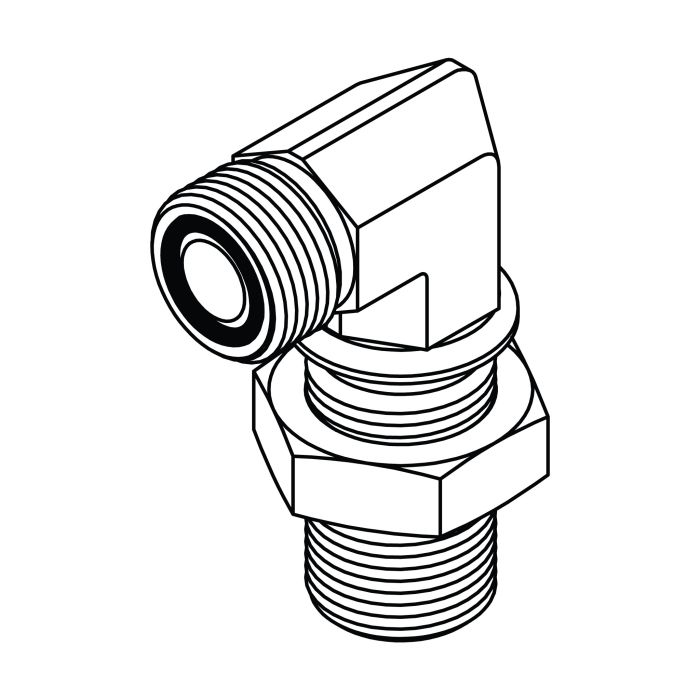

FS2701-LN-08-08 ORFS Bulkhead Union 90° with Locknut

FS2701-LN-08-08 ORFS Bulkhead Union 90° with Locknut | Steel Hydraulic Fitting

The FS2701-LN-08-08 ORFS Bulkhead Union 90° with Locknut is a robust hydraulic fitting designed for secure 90-degree line routing through panels, bulkheads, and hydraulic enclosures. It connects two 1/2" (13/16-16 UNF) Male O-Ring Face Seal (ORFS) ports, ensuring a tight, leak-free connection in medium to high-pressure hydraulic systems.

This version includes an integrated locknut, allowing firm and vibration-resistant mounting to machine panels or structural frames. Manufactured from high-strength steel and compliant with SAE 520701 standards, it delivers excellent durability and long service life in demanding industrial and mobile applications. The ORFS flat-face O-ring sealing system provides reliable leak prevention under pressure surges and continuous operation.

Specifications

• Part Number: FS2701-LN-08-08
• Material: Steel
• Shape: 90° Bulkhead Elbow with Locknut
• Thread 1 Type: Male O-Ring Face Seal (ORFS)
• Thread 1 Nominal Size: 08
• Thread 1 Size: 13/16-16 UNF
• Thread 2 Type: Male O-Ring Face Seal (ORFS)
• Thread 2 Nominal Size: 08
• Thread 2 Size: 13/16-16 UNF
• Standard Compliance: SAE 520701
