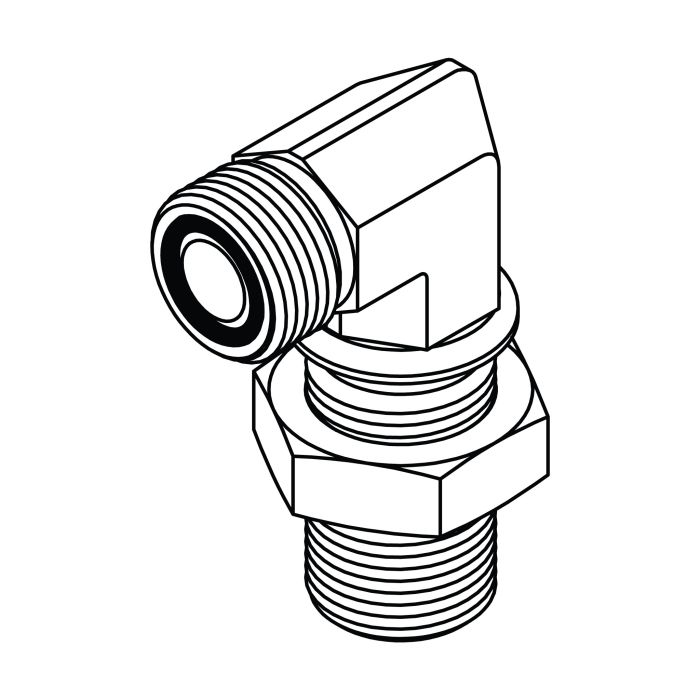

FS2701-LN-06-06 ORFS Bulkhead Union 90° with Locknut

FS2701-LN-06-06 ORFS Bulkhead Union 90° with Locknut | Steel Hydraulic Fitting

The FS2701-LN-06-06 ORFS Bulkhead Union 90° with Locknut is a compact and durable hydraulic fitting designed for secure 90-degree hydraulic line routing through panels and bulkheads. It connects two 3/8" (11/16-16 UNF) Male O-Ring Face Seal (ORFS) ports, ensuring a tight, leak-free connection in high-pressure hydraulic systems.

This fitting includes an integrated locknut, providing stable and vibration-resistant mounting on equipment panels and structural frames. Manufactured from high-strength steel and compliant with SAE 520701 standards, it delivers long service life and reliable performance in demanding industrial, agricultural, and mobile hydraulic applications. The ORFS flat-face O-ring sealing system ensures excellent leak prevention even under pressure spikes and continuous operation.

Specifications

• Part Number: FS2701-LN-06-06
• Material: Steel
• Shape: 90° Bulkhead Elbow with Locknut
• Thread 1 Type: Male O-Ring Face Seal (ORFS)
• Thread 1 Nominal Size: 06
• Thread 1 Size: 11/16-16 UNF
• Thread 2 Type: Male O-Ring Face Seal (ORFS)
• Thread 2 Nominal Size: 06
• Thread 2 Size: 11/16-16 UNF
• Standard Compliance: SAE 520701
