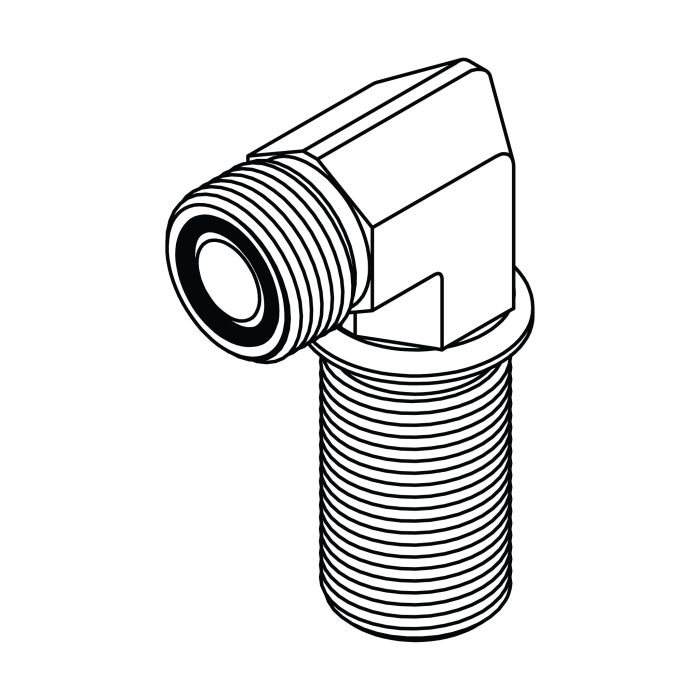

FS2701-10-10 ORFS Bulkhead Union 90°

FS2701-10-10 ORFS Bulkhead Union 90° | Steel Hydraulic Fitting

The FS2701-10-10 ORFS Bulkhead Union 90° is a heavy-duty hydraulic fitting engineered to provide a secure 90-degree connection through panels, bulkheads, and hydraulic enclosures. Designed with two 5/8" (1-14 UNF) Male O-Ring Face Seal (ORFS) ports, it enables efficient hydraulic line routing while maintaining a dependable, leak-free seal in high-pressure applications.

Manufactured from high-strength steel and built to meet SAE 520701 standards, this bulkhead elbow delivers exceptional durability, corrosion resistance, and long service life. The ORFS flat-face O-ring sealing system provides superior leak prevention, making it ideal for demanding hydraulic systems exposed to vibration, pressure spikes, and continuous operation.

Specifications

• Part Number: FS2701-10-10
• Material: Steel
• Shape: 90° Bulkhead Elbow
• Thread 1 Type: Male O-Ring Face Seal (ORFS)
• Thread 1 Nominal Size: 10
• Thread 1 Size: 1-14 UNF
• Thread 2 Type: Male O-Ring Face Seal (ORFS)
• Thread 2 Nominal Size: 10
• Thread 2 Size: 1-14 UNF
• Standard Compliance: SAE 520701
