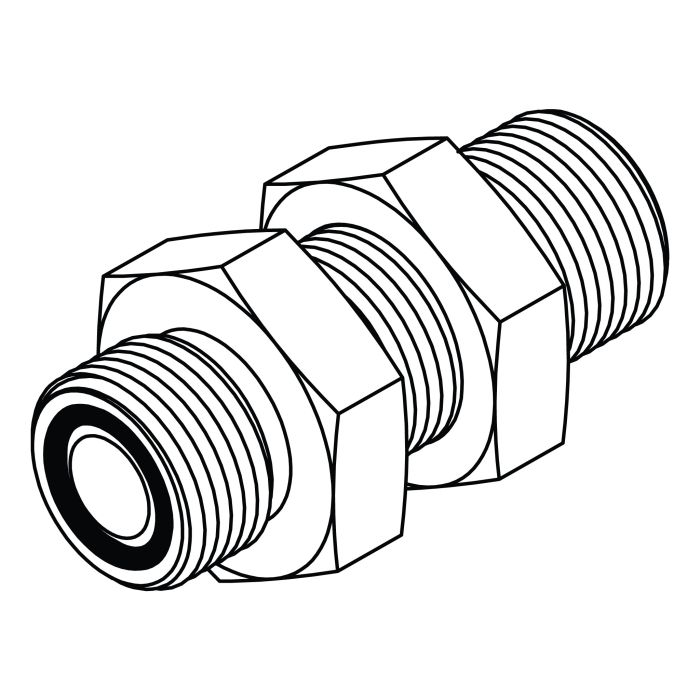

FS2700-LN-08-10 ORFS Bulkhead Union with Locknut

FS2700-LN-08-10 ORFS Bulkhead Union with Locknut | Steel Hydraulic Fitting

The FS2700-LN-08-10 ORFS Bulkhead Union with Locknut is a heavy-duty hydraulic fitting designed to connect two different ORFS line sizes (-08 to -10) through a panel or bulkhead. It provides a secure straight-through hydraulic connection while allowing stable installation using an integrated locknut for firm mounting on equipment panels or enclosures.

Manufactured from high-strength steel and engineered to SAE 520601 standards, this bulkhead union delivers excellent durability, vibration resistance, and long service life in demanding hydraulic systems. The ORFS flat-face O-ring sealing system ensures a reliable, leak-free connection even under high pressure, shock loads, and continuous industrial operation.

Specifications

• Part Number: FS2700-LN-08-10
• Material: Steel
• Shape: Straight (Bulkhead Union with Locknut)
• Thread 1 Type: Male ORFS
• Thread 1 Size: 13/16"-16 (-08 size)
• Thread 2 Type: Male ORFS
• Thread 2 Size: 1"-14 (-10 size)
• Standard Compliance: SAE 520601
