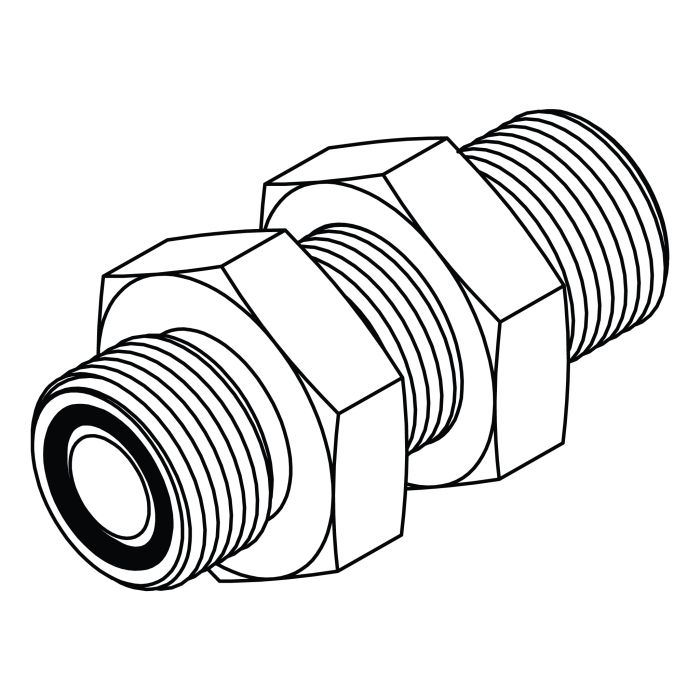

FS2700-LN-08-08 ORFS Bulkhead Union with Locknut

FS2700-LN-08-08 ORFS Bulkhead Union with Locknut | Steel Hydraulic Fitting

The FS2700-LN-08-08 ORFS Bulkhead Union with Locknut is a heavy-duty hydraulic fitting designed to connect two 13/16"-16 Male O-Ring Face Seal (ORFS) (-08) lines through a panel or bulkhead. It provides a straight-through hydraulic connection while allowing secure installation using an integrated locknut, ensuring a firm and stable mount on equipment panels or enclosures.

Manufactured from high-strength steel and built to SAE 520601 standards, this bulkhead union delivers excellent durability, vibration resistance, and long service life in demanding hydraulic systems. The ORFS flat-face O-ring sealing system provides a reliable, leak-free connection even under high pressure, shock loads, and continuous operation in industrial environments.

Specifications

• Part Number: FS2700-LN-08-08
• Material: Steel
• Shape: Straight (Bulkhead Union with Locknut)
• Thread 1 Type: Male ORFS
• Thread 1 Size: 13/16"-16 (-08 size)
• Thread 2 Type: Male ORFS
• Thread 2 Size: 13/16"-16 (-08 size)
• Standard Compliance: SAE 520601
