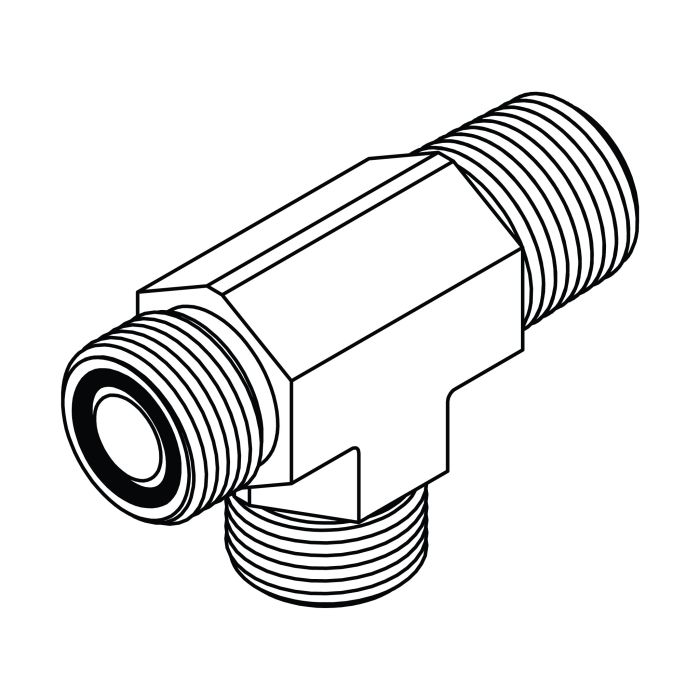

FS2605-08-08-08 ORFS to Pipe Run Tee

FS2605-08-08-08 ORFS to Pipe Run Tee | Steel Hydraulic Adapter

The FS2605-08-08-08 ORFS to Pipe Run Tee is a hydraulic tee fitting designed to connect two 1/2" (13/16-16) Male O-Ring Face Seal (ORFS) (-08) ports on the run with a 1/2"-14 Male Pipe (NPT) (-08) branch connection. This configuration allows efficient fluid distribution or branching between ORFS hydraulic lines and NPT pipe systems while maintaining reliable sealing performance.

Manufactured from high-strength steel and built to SAE 520424 standards, this run tee is engineered for durability, vibration resistance, and dependable performance in demanding hydraulic applications. The ORFS connections utilize flat-face O-ring sealing technology for superior leak prevention, while the NPT branch provides compatibility with standard pipe-thread hydraulic components.

Specifications

• Part Number: FS2605-08-08-08
• Material: Steel
• Shape: Tee (Run Tee)
• Thread 1: Male ORFS (-08)
• Thread 1 Size: 13/16-16
• Thread 2: Male Pipe (NPT) (-08)
• Thread 2 Size: 1/2-14
• Thread 3: Male ORFS (-08)
• Thread 3 Size: 13/16-16
• Standard: SAE 520424
