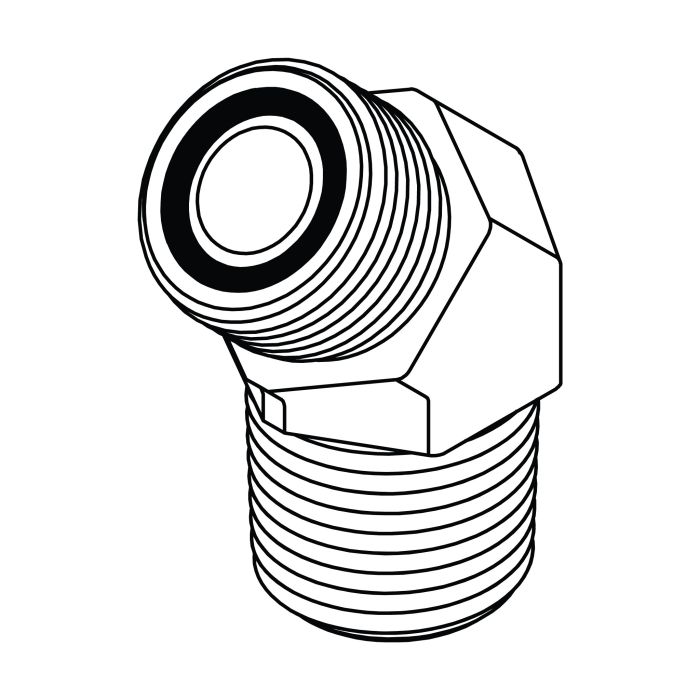

FS2503-06-08 ORFS to Pipe Elbow 45°

FS2503-06-08 ORFS to Pipe Elbow 45° | Steel Hydraulic Adapter

The FS2503-06-08 ORFS to Pipe Elbow 45° is a hydraulic adapter designed to connect a 3/8" (11/16-16) Male O-Ring Face Seal (ORFS) (-06) port to a 1/2"-14 Male Pipe (NPT) (-08) connection at a 45-degree angle. This fitting provides a dependable transition between ORFS hydraulic systems and pipe-thread components while allowing smoother hose and tube routing in space-constrained applications.

Manufactured from high-strength steel and built to SAE 520302 standards, this 45° elbow fitting is engineered for demanding hydraulic environments where durability, vibration resistance, and leak-free performance are essential. The ORFS side utilizes a flat-face O-ring seal for superior sealing under pressure, while the pipe-thread side ensures compatibility with standard hydraulic piping systems.

Specifications

• Part Number: FS2503-06-08
• Material: Steel
• Shape: 45° Elbow
• Thread 1: Male ORFS (-06)
• Thread 1 Size: 11/16-16
• Thread 2: Male Pipe (NPT) (-08)
• Thread 2 Size: 1/2-14
• Standard: SAE 520302
