FS2503-04-02 ORFS to Pipe Elbow 45°

FS2503-04-02 ORFS to Pipe Elbow 45° | Steel Hydraulic Adapter

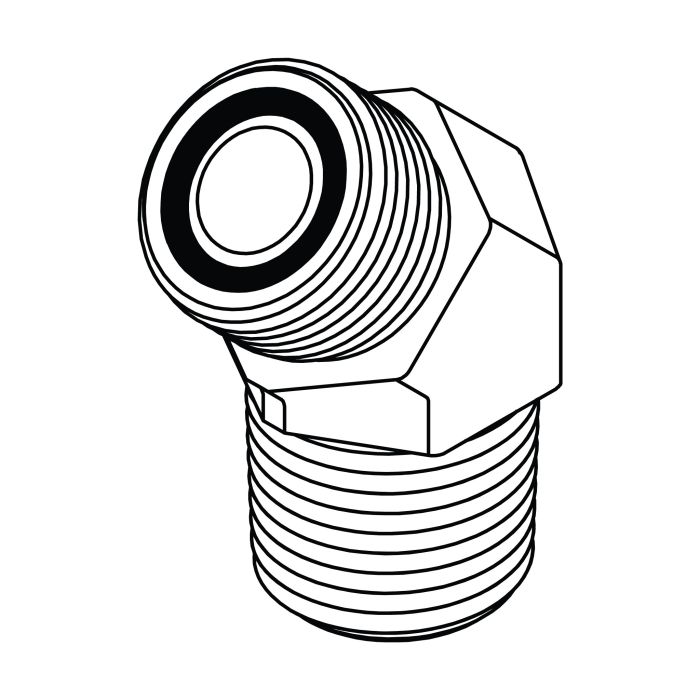

The FS2503-04-02 ORFS to Pipe Elbow 45° is a hydraulic adapter designed to connect a 1/4" (9/16-18) Male O-Ring Face Seal (ORFS) (-04) port to a 1/8"-27 Male Pipe (NPT) (-02) connection at a 45-degree angle. It provides a compact, reliable transition between ORFS hydraulic systems and pipe-thread components while maintaining a secure, leak-resistant seal.

Manufactured from high-strength steel and built to SAE 520302 standards, this 45-degree elbow fitting is engineered for durability, vibration resistance, and long service life. The ORFS side uses a flat-face O-ring seal for high-pressure performance, while the pipe-thread side ensures compatibility with standard hydraulic piping systems.

Specifications

• Part Number: FS2503-04-02
• Material: Steel
• Shape: 45° Elbow
• Thread 1: Male ORFS (-04)
• Thread 1 Size: 9/16-18
• Thread 2: Male Pipe (NPT) (-02)
• Thread 2 Size: 1/8-27
• Standard: SAE 520302
