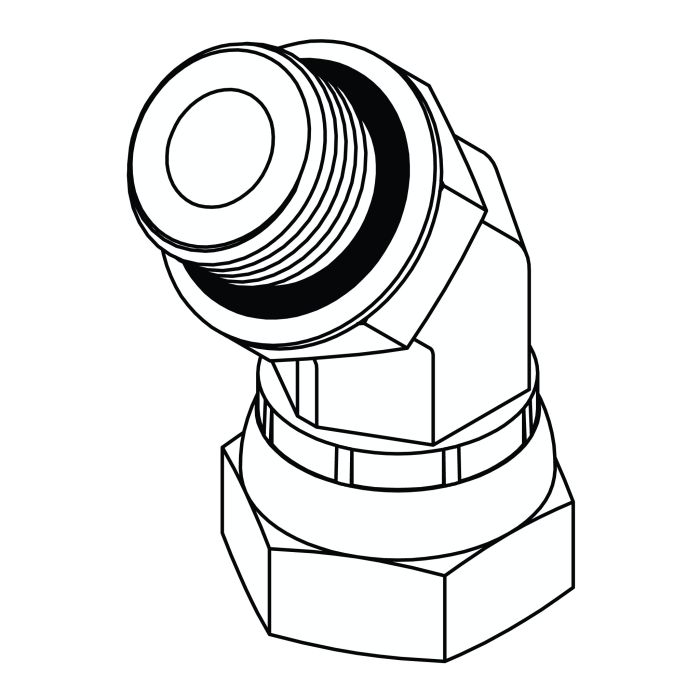

6902-06-04 O-Ring to Pipe Swivel Elbow 45°

Product Overview

The 6902-06-04 O-Ring to Pipe Swivel Elbow 45° is a steel hydraulic fitting designed to connect a male O-ring (ORB-style) port to a female pipe swivel connection at a 45-degree angle.

It is used in hydraulic systems where space-saving routing, directional flow control, and reliable sealing are required. The swivel feature allows easier alignment during installation, helping reduce stress on hoses and rigid tubing.

Built from durable steel, this fitting ensures dependable performance in medium-pressure hydraulic applications with long service life and resistance to vibration.

Specifications

• Part Number: 6902-06-04
• Material: Steel
• Shape: 45° Elbow
• Compliance: SAE 140357

Connection Details

Thread 1

• Type: Male O-Ring
• Nominal Size: 06
• Thread: 9/16-18

Thread 2

• Type: Female Pipe Swivel
• Nominal Size: 04
• Thread: 1/4-18
