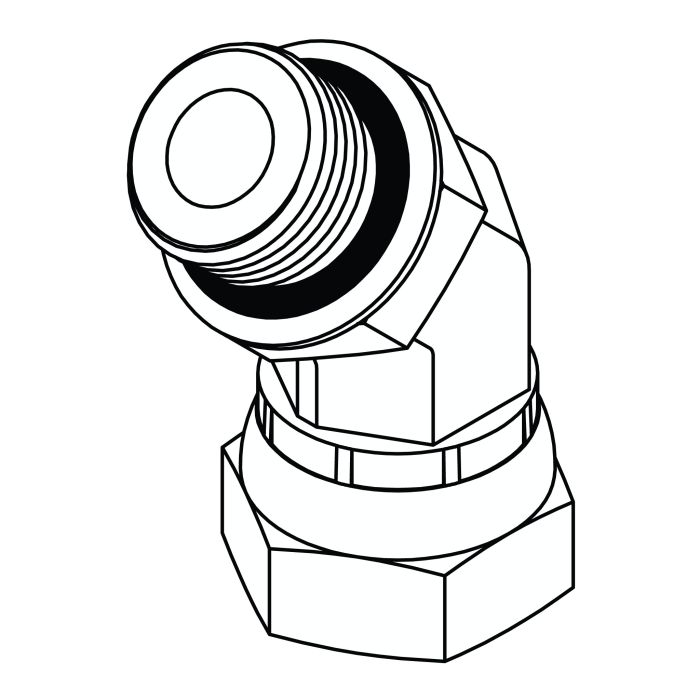

6902-04-04 O-Ring to Pipe Swivel Elbow 45°

Product Overview

The 6902-04-04 O-Ring to Pipe Swivel Elbow 45° is a steel hydraulic fitting designed to connect a male O-ring (ORB-style) port to a female pipe swivel connection at a 45-degree angle.

It is commonly used in hydraulic systems where directional flow adjustment and reliable sealing are required in compact installation spaces. The swivel design allows easier alignment during assembly, reducing stress on tubing and improving installation flexibility.

Manufactured from durable steel, this fitting provides strong mechanical performance, leak resistance, and long service life in demanding hydraulic applications.

Specifications

• Part Number: 6902-04-04
• Material: Steel
• Shape: 45° Elbow
• Compliance: SAE 140357

Connection Details

Thread 1

• Type: Male O-Ring
• Nominal Size: 04
• Thread: 7/16-20

Thread 2

• Type: Female Pipe Swivel
• Nominal Size: 04
• Thread: 1/4-18
