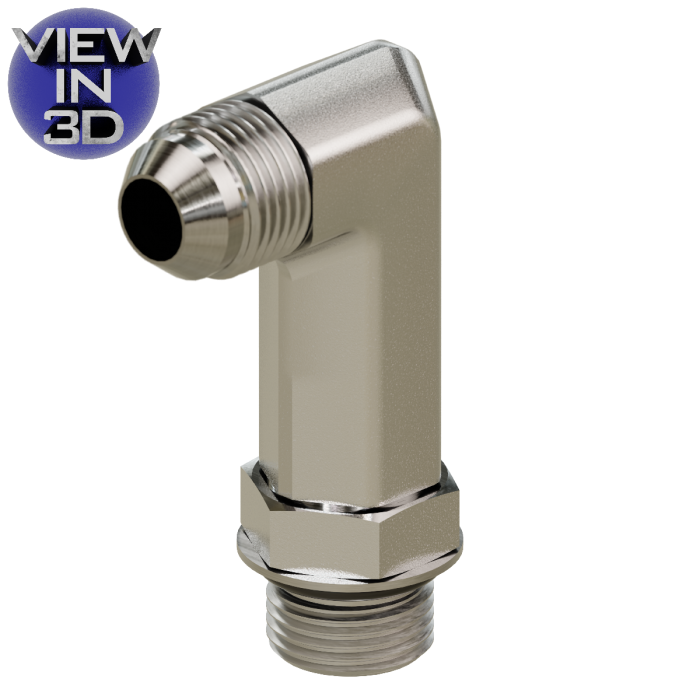

6801-LL-06-08 JIC to O-Ring - Extra Long Elbow 90°
6801-LL-06-08 JIC to O-Ring - Extra Long Elbow 90°
Steel hydraulic extra-long 90° elbow designed to connect a 9/16-18 Male JIC (-06) end with a 3/4-16 Male O-Ring (-08) end. The extended “LL” design provides additional reach and clearance for easier installation in tight hydraulic assemblies while maintaining a secure, leak-free transition between JIC 37° flare and O-Ring Boss sealing systems.
Specifications
Material: Steel
Shape: 90 degree elbow
Thread 1 Type: Male JIC
Thread 1 Nominal Size: 06
Thread 1: 9/16-18
Thread 2 Type: Male O-Ring
Thread 2 Nominal Size: 08
Thread 2: 3/4-16
Drop Length: 2.49
