6801-LL-06-06 JIC to O-Ring - Extra Long Elbow 90°

6801-LL-06-06 JIC to O-Ring - Extra Long Elbow 90°

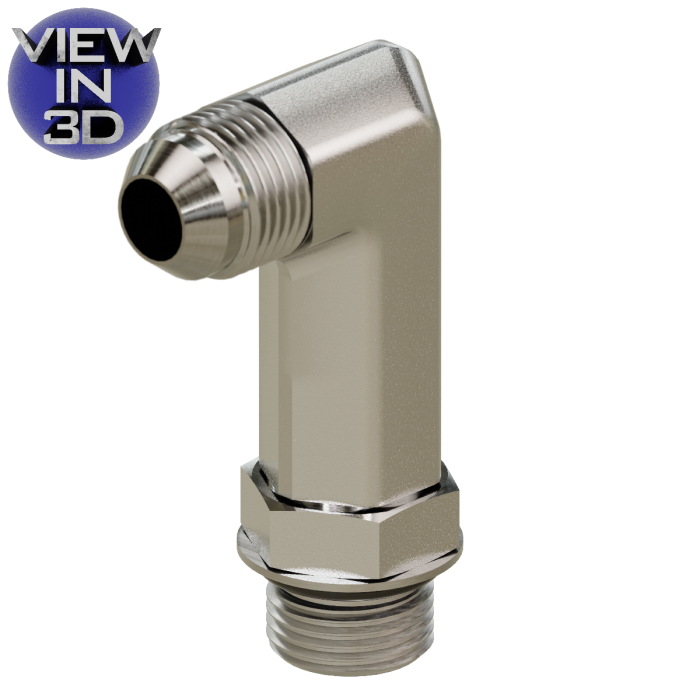

Steel hydraulic extra-long 90° elbow adapter designed to connect a 9/16-18 Male JIC (-06) end with a 9/16-18 Male O-Ring (-06) end. The “LL” extra-long design provides increased clearance for easier installation and improved hose routing in tight hydraulic systems while maintaining a secure, leak-free connection.

Specifications

• Material: Steel
• Shape: 90 Degree Extra Long Elbow
• Thread 1 Type: Male JIC
• Thread 1 Nominal Size: 06
• Thread 1: 9/16-18
• Thread 2 Type: Male O-Ring
• Thread 2 Nominal Size: 06
• Thread 2: 9/16-18
• Drop Length: 2.08
