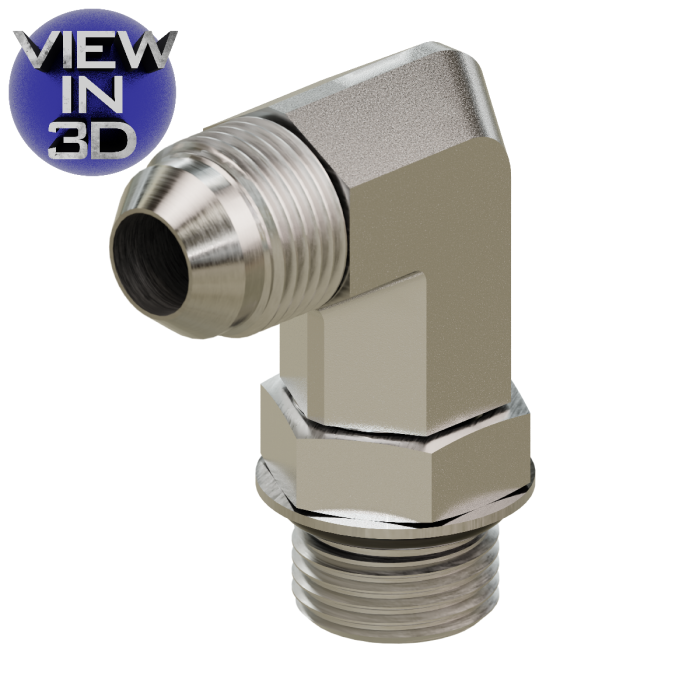

6801-L-04-04 JIC to O-Ring - Long Elbow 90°

6801-L-04-04 JIC to O-Ring - Long Elbow 90°

Steel hydraulic long 90° elbow adapter designed to connect a 7/16-20 Male JIC (-04) end with a 7/16-20 Male O-Ring (-04) end. The long drop design provides additional clearance for easier hose routing and installation in compact hydraulic systems while maintaining a secure, leak-free connection.

Specifications

• Material: Steel
• Shape: 90 Degree Long Elbow
• Thread 1 Type: Male JIC
• Thread 1 Nominal Size: 04
• Thread 1: 7/16-20
• Thread 2 Type: Male O-Ring
• Thread 2 Nominal Size: 04
• Thread 2: 7/16-20
• Drop Length: 1.19
