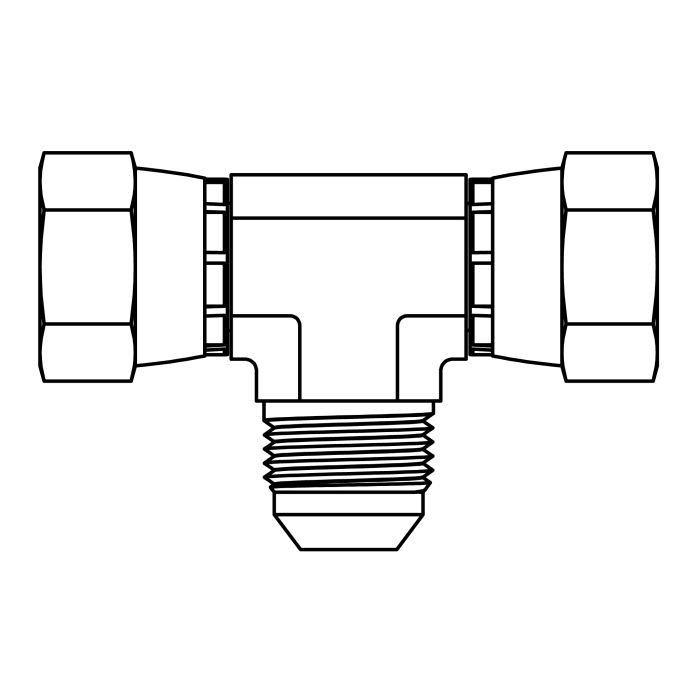

6603-10-10-10 JIC Swivel Branch Tee

6603-10-10-10 JIC Swivel Branch Tee

Steel hydraulic branch tee designed with a 3-way connection: two 7/8-14 Female JIC Swivel (-10) ends and one Male JIC (-10) end. It provides efficient flow distribution in JIC 37° flare hydraulic systems, ensuring secure, leak-free performance in medium to high-pressure applications.

Specifications

Material: Steel
Shape: Tee
Thread 1 Type: Female JIC Swivel
Thread 1 Nominal Size: 10
Thread 1: 7/8-14
Thread 2 Type: Female JIC Swivel
Thread 2 Nominal Size: 10
Thread 2: 7/8-14
Thread 3 Type: Male JIC
Thread 3 Nominal Size: 10
Thread 3: 7/8-14
