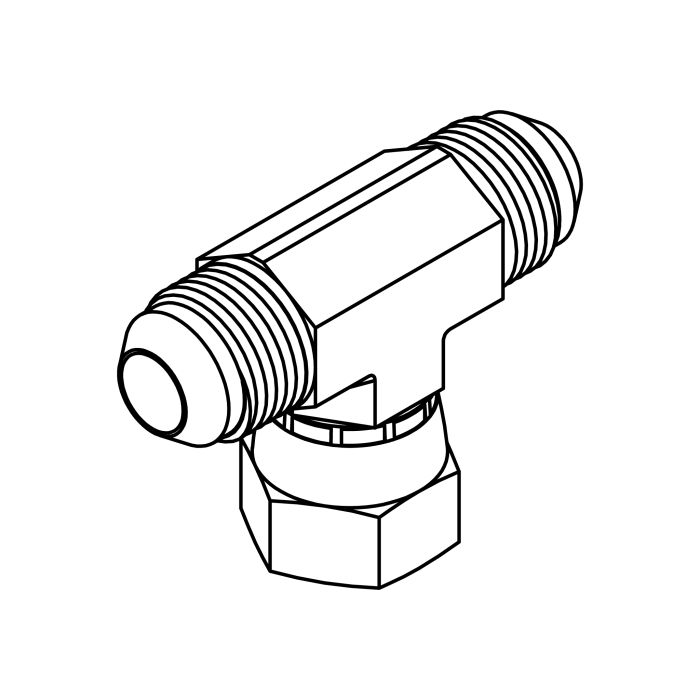

6600-16-16-16 JIC Swivel Branch Tee

6600-16-16-16 JIC Swivel Branch Tee

Steel hydraulic branch tee designed with a 3-way connection: two 1 5/16-12 Male JIC (-16) ends and one Female JIC Swivel (-16) end. It provides flexible flow distribution in JIC 37° flare systems, ensuring reliable, leak-free performance in medium to high-pressure hydraulic applications.

Specifications

Material: Steel
Shape: Tee
Thread 1 Type: Male JIC
Thread 1 Nominal Size: 16
Thread 1: 1 5/16-12
Thread 2 Type: Male JIC
Thread 2 Nominal Size: 16
Thread 2: 1 5/16-12
Thread 3 Type: Female JIC Swivel
Thread 3 Nominal Size: 16
Thread 3: 1 5/16-12
