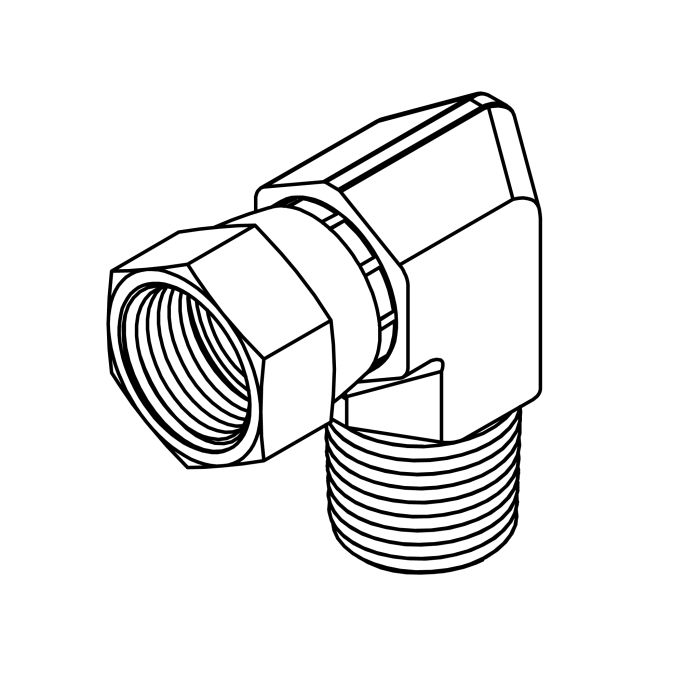

6501-04-04 | JIC Swivel to Pipe Elbow 90° (7/16-20 × 1/4-18)

Product Description

The 6501-04-04 hydraulic elbow fitting is ideal for small-diameter hose connections requiring a 90-degree turn. Its female JIC swivel design allows proper orientation during assembly, while the male pipe thread ensures a tight mechanical fit. Steel construction provides long-term reliability in demanding operating conditions.

Specifications

• Material: Steel

• Shape: 90° Elbow

• Thread 1 Type: Female JIC Swivel

• Thread 1 Size: 7/16-20

• Thread 2 Type: Male Pipe

• Thread 2 Size: 1/4-18


Features

• Compact elbow profile

• Swivel connection reduces installation stress

• Durable steel construction

• Suitable for high-pressure use


Applications

• Precision hydraulic circuits
• Instrumentation lines

• Compact equipment layouts
