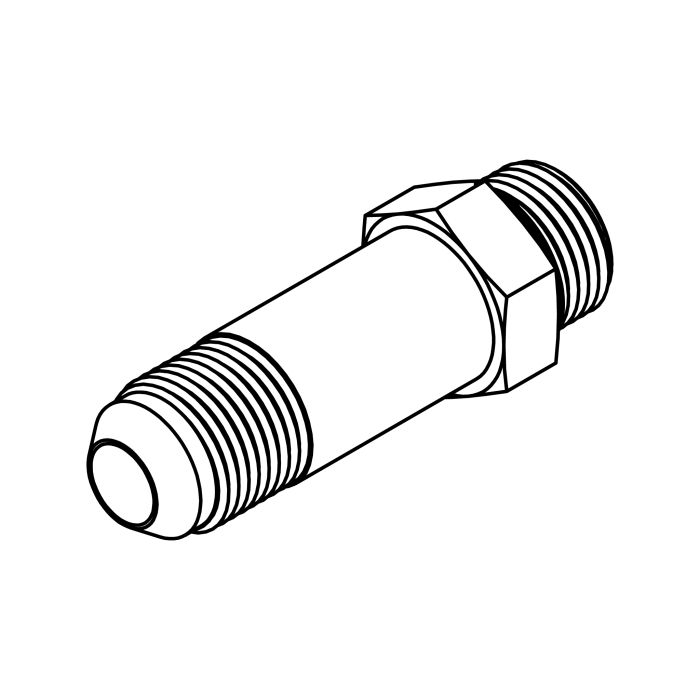

6400-L-10-10 JIC to O-Ring - Long
6400-L-10-10 JIC to O-Ring – Long
Steel hydraulic straight adapter designed for 7/8-14 Male JIC (-10) to 7/8-14 Male O-Ring (-10) connection. It provides a reliable transition between JIC 37° flare and SAE O-Ring Boss (ORB) sealing systems for high-pressure hydraulic applications.
Specifications
Material: Steel
Shape: Straight
Thread 1 Type: Male JIC
Thread 1 Size: 7/8-14 (-10)
Thread 2 Type: Male O-Ring (ORB)
Thread 2 Size: 7/8-14 (-10)
Overall Length (OAL): 3.04 in
