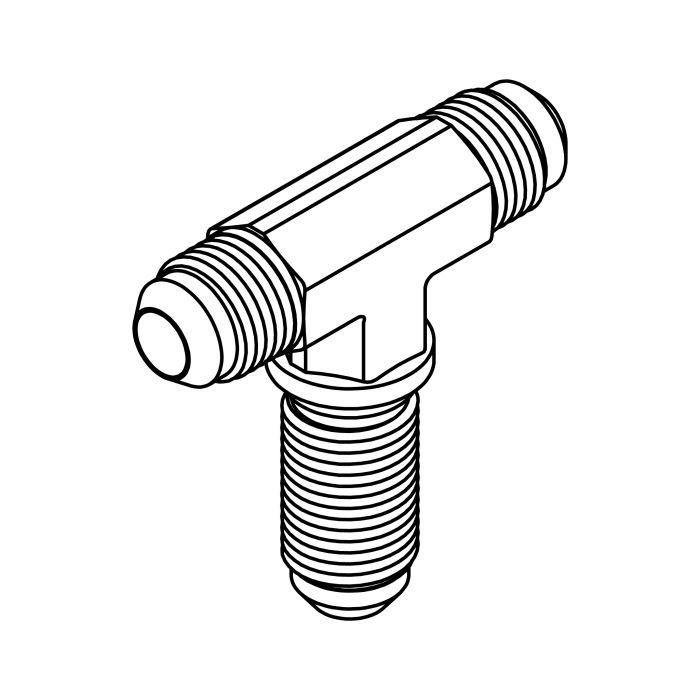

2703-04-04-04 JIC Bulkhead Union Branch Tee
2703-04-04-04 JIC Bulkhead Union Branch Tee
Steel hydraulic bulkhead branch tee fitting designed for 7/16-20 Male JIC (-04) connections on all three ports. It allows three-way flow distribution through a panel or bulkhead using a 37° flare sealing system for secure and leak-free hydraulic performance.
Specifications
- Material: Steel
- Shape: Tee (Bulkhead Branch Tee)
- Thread 1 Type: Male JIC
- Thread 1 Nominal Size: 04
- Thread 1: 7/16-20
- Thread 2 Type: Male JIC
- Thread 2 Nominal Size: 04
- Thread 2: 7/16-20
- Thread 3 Type: Male JIC
- Thread 3 Nominal Size: 04
- Thread 3: 7/16-20
- Compliance: MS 51515, SAE 070959
