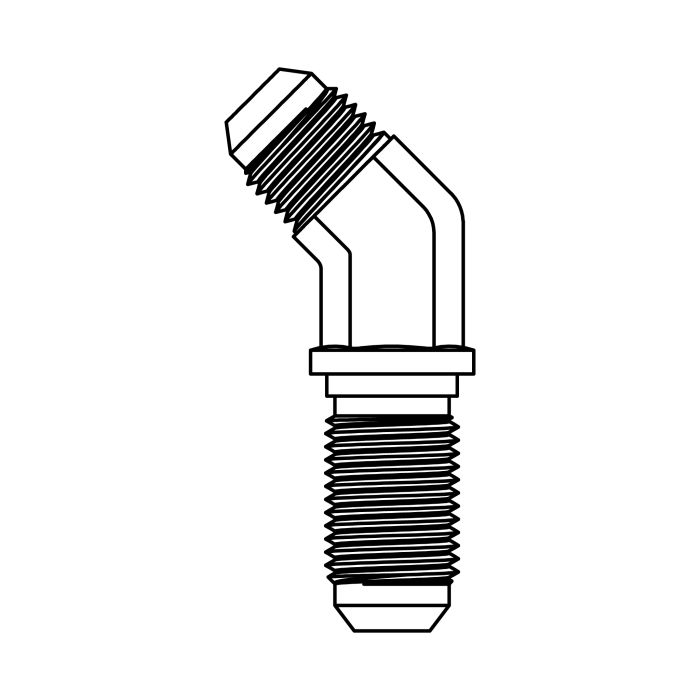

2702-10-10 JIC Bulkhead Union Elbow 45°
2702-10-10 JIC Bulkhead Union Elbow 45°
Steel hydraulic bulkhead elbow fitting (45°) designed to connect 7/8-14 Male JIC (-10) on both sides. It provides a 45° directional flow change while passing through a panel or bulkhead, using a 37° flare sealing system for secure, leak-free hydraulic connections.
Specifications
- Material: Steel
- Shape: 45° Elbow (Bulkhead)
- Thread 1: Male JIC (7/8-14, -10)
- Thread 2: Male JIC (7/8-14, -10)
- Standard: MS 51509, SAE 070801
