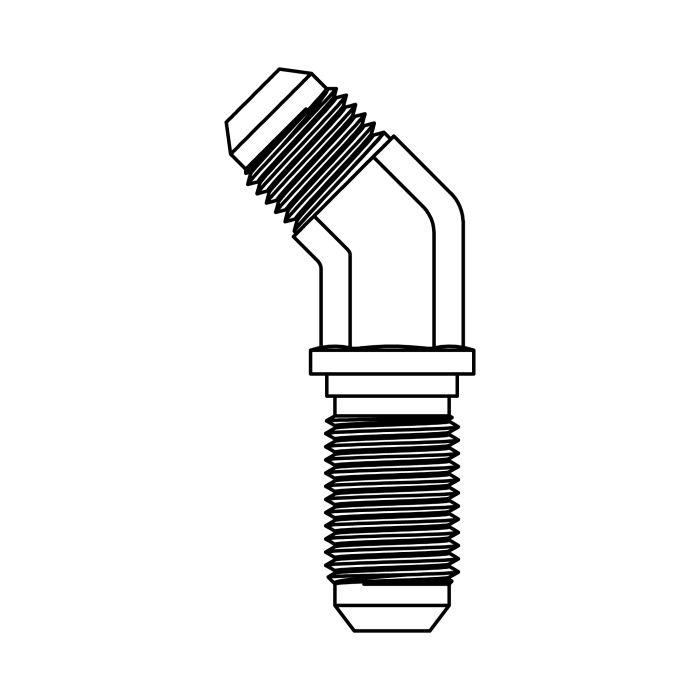

2702-05-05 JIC Bulkhead Union Elbow 45°

2702-05-05 JIC Bulkhead Union Elbow 45°

Steel hydraulic bulkhead elbow fitting (45°) designed to connect 1/2-20 Male JIC (-05) on both sides. It provides a 45° directional change while passing through a panel or mounting surface, using a 37° flare sealing connection for leak-free hydraulic performance.

Specifications

• Material: Steel
• Shape: 45° Elbow (Bulkhead)
• Thread 1: Male JIC (1/2-20, -05)
• Thread 2: Male JIC (1/2-20, -05)
• Standard: MS 51509, SAE 070801
