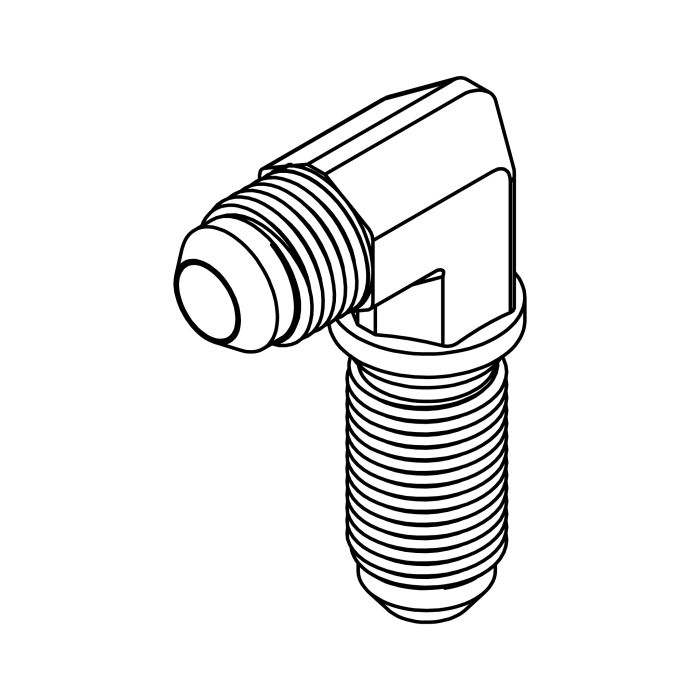

2701-08-08 JIC Bulkhead Union Elbow 90°

2701-08-08 JIC Bulkhead Union Elbow 90°

Steel hydraulic bulkhead elbow fitting (90°) designed to connect 3/4-16 Male JIC (-08) on both sides. It provides a 90° directional change while passing through a panel or mounting surface, using a secure 37° flare sealing connection.

Specifications

• Material: Steel
• Shape: 90° Elbow (Bulkhead)
• Thread 1: Male JIC (3/4-16, -08)
• Thread 2: Male JIC (3/4-16, -08)
• Standard: SAE 070701, MS 51507
