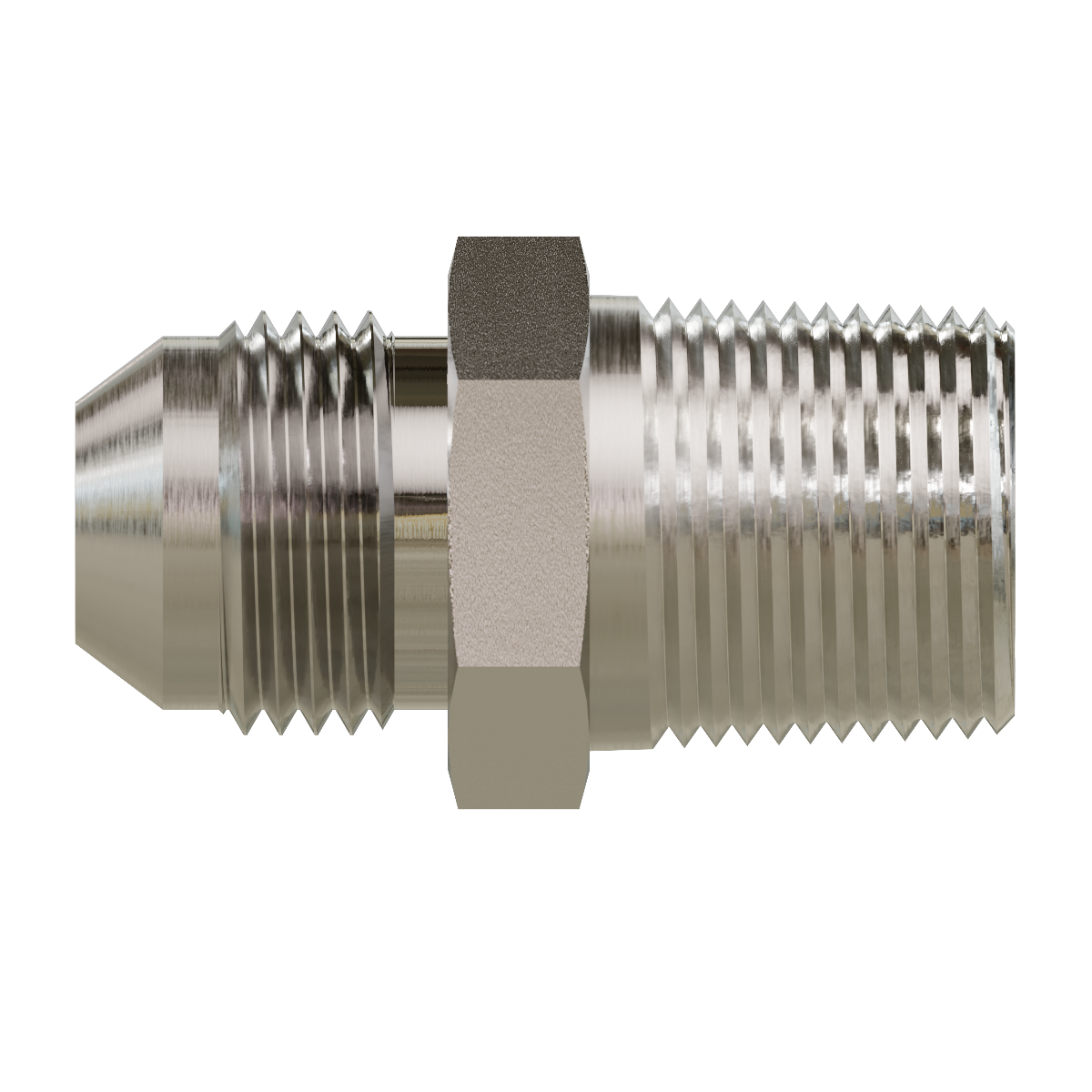

2404-06-06 JIC to Pipe

The 2404-06-06 JIC to Pipe Adapter is designed to create a secure and efficient connection between JIC 37° flare fittings and NPT pipe threads in hydraulic systems. Manufactured from high-quality steel, it provides excellent strength, durability, and resistance to demanding operating conditions.
Its straight configuration ensures easy installation and proper alignment, while precision-machined threads deliver a tight, leak-resistant seal. This adapter is ideal for use in industrial and hydraulic applications where consistent and reliable performance is required.
JIC fittings utilize a 37° flare design that forms a strong metal-to-metal seal, making them suitable for high-pressure systems and widely used across fluid transfer applications.

Specifications

Material: Steel
 Shape: Straight
Thread 1 Type: Male JIC (37° flare)
 Thread 1 Nominal Size: 06
 Thread 1: 9/16"-18
Thread 2 Type: Male Pipe (NPT)
 Thread 2 Nominal Size: 06
 Thread 2: 3/8"-18
Compliance: MS 51500, SAE 070102
