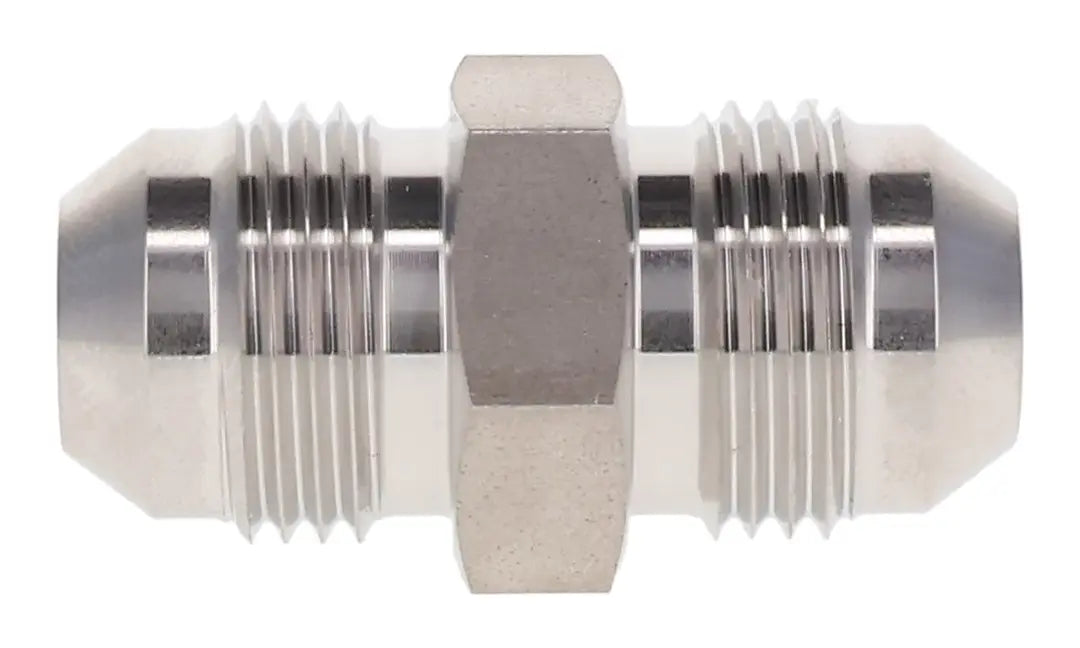

The 2403-04-04SS JIC SAE Flare Male Tube Union is a precision-engineered hydraulic fitting designed to securely connect two equal-size JIC flare lines without compromising system integrity. Manufactured from forged 316 stainless steel, this union delivers exceptional resistance to corrosion, chemical exposure, and high-pressure hydraulic conditions, making it suitable for both indoor and outdoor applications.
Key Specifications
- Material: 316 Stainless Steel
- Compliance: MS 51501, SAE 070101
- Configuration: Straight, three-piece union
- Nominal Size: 04 x 04
- Thread Type: Male JIC x Male JIC
- Thread 1: 7/16-20
- Thread 2: 7/16-20
Typical Applications
-
Hydraulic instrumentation lines
-
Stainless steel tubing assemblies
-
Compact hydraulic systems
-
Chemical and corrosive fluid environments
Attributes:
This fitting features a three-piece construction consisting of two 37° JIC flared male ends and a central hexagonal nut. This design allows technicians to assemble or disconnect hydraulic tubing without rotating the entire line, reducing stress on hoses, tubing, and nearby components. This is especially critical in compact systems where line movement is limited.
The 04-size JIC threads (7/16-20) provide a tight, metal-to-metal seal when properly torqued, ensuring leak-free performance in hydraulic, pneumatic, and fluid transfer systems.
