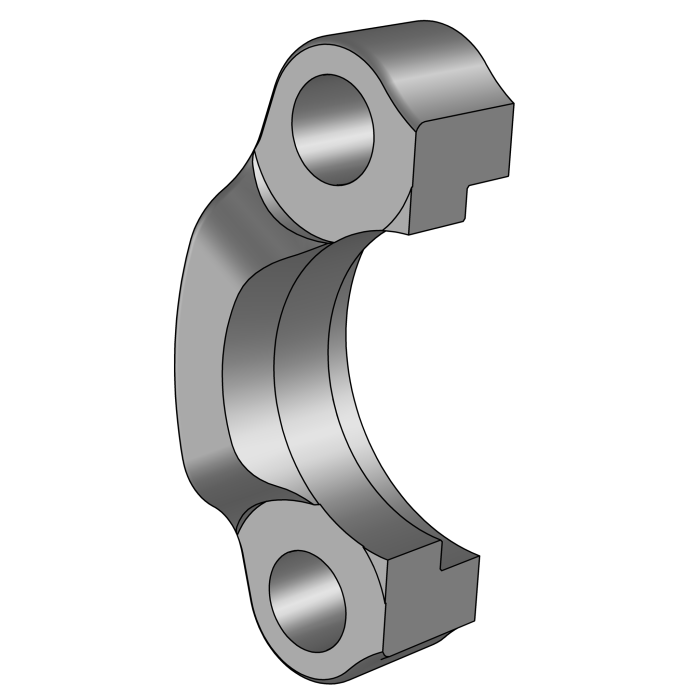

1951-16 Split Flange Half Code 61 | Forged Steel 1 Inch | 3000 PSI

Product Description

The 1951-16 Split Flange Half Code 61 is a forged carbon steel hydraulic clamp component designed for 1-inch nominal SAE Code 61 flange connections. This product includes only the flange half and is supplied without bolts or an O-ring seal. Hardware kits are purchased separately to complete installation.

One-inch hydraulic hose circuits are common across industrial and mobile hydraulic systems. Code 61 split flange fittings provide a secure and vibration-resistant method for attaching adapters to port blocks. The 1951-16 flange half enables mechanics and engineers to assemble leak-free hydraulic connections using the standard clamped sealing method.

SPECIFICATIONS

• Material: Forged Steel
• Thread 1 Type: SAE Code 61 Flange
• Nominal Size: 16
• Connection Size: 1 inch
• Pressure Rating: up to 3000 PSI
• Split Flange Half only
• Bolts and O-Ring: Not Included
• Series: SAE 1951-16
• Compliance: Code 61

APPLICATIONS

• Heavy equipment hydraulic hose lines
• Construction machinery
• Agricultural hydraulics
• Mining vehicle circuits
• Industrial hydraulic systems
• Pump outlet clamping
• Manifold to hose assemblies
• Replacement of corroded clamps
• Mobile hydraulics maintenance

Each component is manufactured from high-strength forged steel to ensure dimensional precision and long-term durability. The anti-corrosion coating protects the surface from rust and harsh environmental exposure. These features make the 1951-16 split flange half ideal as an OEM replacement part during hydraulic maintenance and repair.
