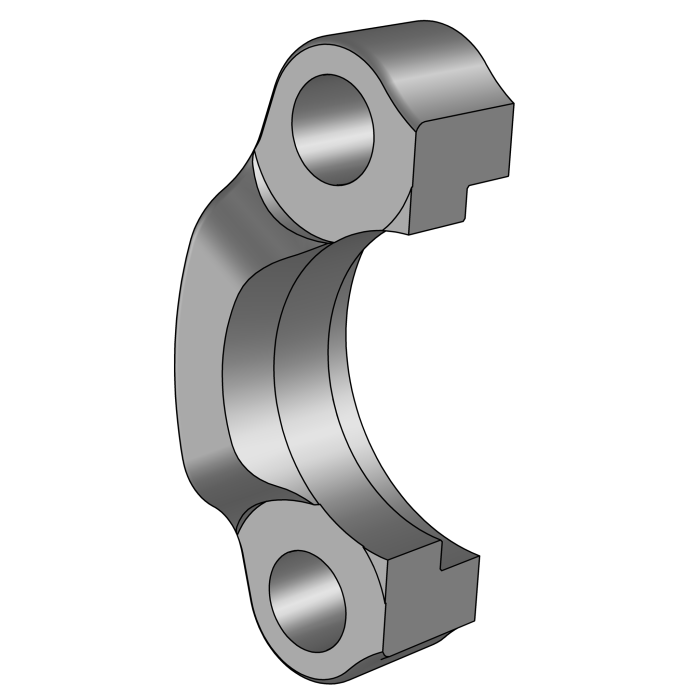

1951-08 Split Flange Half Code 61 | Forged Steel 1/2 Inch | 3000 PSI

Product Description

The 1951-08 Split Flange Half Code 61 is a forged steel hydraulic clamp component used to secure hose fittings and adapters to SAE Code 61 flange port blocks. This product is designed for 1/2 inch nominal size flange connections and is supplied as the flange half only. Mounting bolts and sealing O-rings are selected and installed separately.

In hydraulic systems that require high flow rates and dependable pressure performance, split flange assemblies are preferred over large threaded connectors.

SPECIFICATIONS

• Material: Forged Steel
• Thread 1 Type: SAE Code 61 Flange
• Nominal Size: 08
• Connection Size: 1/2 inch
• Pressure Rating: up to 3000 PSI
• Shape: Split Flange Half only
• Hardware Not Included (No Bolts or O-Ring)
• Series: SAE 1951-08
• Compliance: Code 61

STANDARDS & COMPLIANCE

• Meets SAE Code 61 hydraulic flange standard
• Interchangeable with Code 61 adapters
• Compatible with standard hydraulic port blocks
• Manufactured to industrial hydraulic tolerances
• Designed for use with separate flange seals

FEATURES

• Forged carbon steel construction
• Protective anti-corrosion coating
• Precision-machined clamping surface
• Even load distribution design
• Vibration-resistant connection
• Suitable for high-flow circuits
• Ideal for OEM equipment repair
• Durable long-life performance

APPLICATIONS

• Heavy equipment hydraulic hose assemblies
• Agricultural and industrial machinery
• Mining vehicle hydraulic lines
• Pump outlet and return connections
• Hydraulic manifolds and valve blocks
• Mobile hydraulics maintenance
• Replacement of damaged flange clamps
• Secure flange-mounted fittings
• High-flow oil transfer circuits

The Code 61 flange design creates a tight and stable joint by using two matching halves that evenly distribute clamping force around the fitting. The 1951-08 flange half allows technicians to complete professional-grade hydraulic hose installations with improved resistance to vibration and mechanical stress.

The component is produced from forged carbon steel to ensure superior strength and impact resistance. A durable anti-corrosion coating protects the steel from moisture, oils, and harsh environmental conditions commonly encountered in the heavy equipment world.
