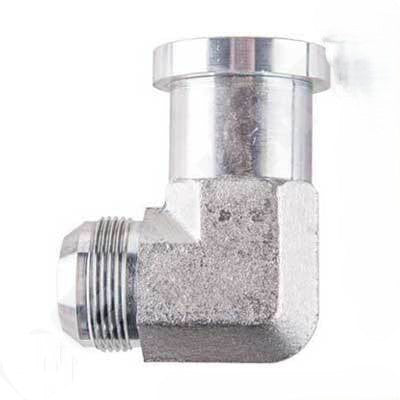

1804-16-12FG Forged Body JIC to Flange Elbow 90° – Code 62

Product Description

 The 1804-16-12FG Forged Body JIC to Flange Elbow 90° is engineered for high-pressure hydraulic systems requiring a reliable 90-degree directional connection. This elbow features a male JIC thread (16, 1 5/16-12) on one end and a Code 62 flange (12, 3/4) on the other, providing secure attachment to pumps, manifolds, and valve blocks.

Specifications

• Material: Forged Steel
• Shape: 90-degree elbow
• Thread 1: Male JIC, Size 16 (1 5/16-12)
• Thread 2: Code 62 Flange, Size 12 (3/4)
• Compliance: SAE Code 62
• Maximum Pressure: 6,000 PSI

Standards and Compliance

• SAE Code 62 high-pressure compliance
• Industrial-grade forged steel construction
• Interchangeable with standard JIC and Code 62 flange ports

Features

• High-strength forged steel
• Leak-free 90° hydraulic connection
• Vibration-resistant design
• Industrial durability for heavy equipment

Applications

• High-pressure hydraulic pump connections
• Manifold and valve block installations
• Mobile machinery hydraulics
• Heavy equipment fluid circuits

Constructed from forged carbon steel, the elbow delivers superior strength, vibration resistance, and durability in heavy equipment and industrial applications. Code 62 compliance ensures a maximum working pressure of up to 6,000 PSI, making it ideal for high-pressure hydraulic circuits.
