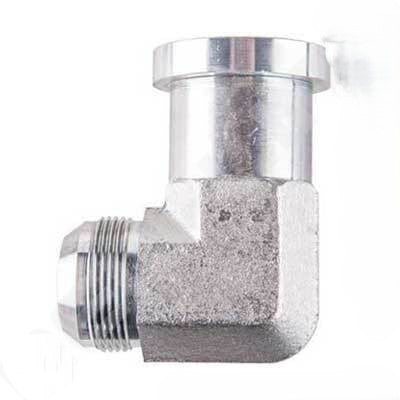

1704-12-12FG Forged Body Style JIC to Flange Elbow 90°-Code 61

Product Overview

The 1704-12-12FG Forged Body Style JIC to Code 61 Flange 90° Elbow is a high-strength hydraulic fitting designed to connect a Male JIC threaded port to a Code 61 flange interface at a 90-degree angle.

This version features a forged body construction (FG) made from domestic forged steel, offering improved mechanical strength, durability, and performance under high-pressure hydraulic conditions.

It is widely used in heavy-duty hydraulic systems where reliability, leak prevention, and structural integrity are critical.

Specifications

• Part Number: 1704-12-12FG
• Material: Forged Domestic Steel
• Shape: 90° Elbow
• Body Type: Forged (FG Style)
• Compliance: Code 61

Thread 1

• Type: Male JIC
• Nominal Size: 12
• Thread Size: 1 1/16-12 UNF

Thread 2

• Type: Code 61 Flange
• Nominal Size: 12
• Flange Size: 3/4" (Code 61 interface)
