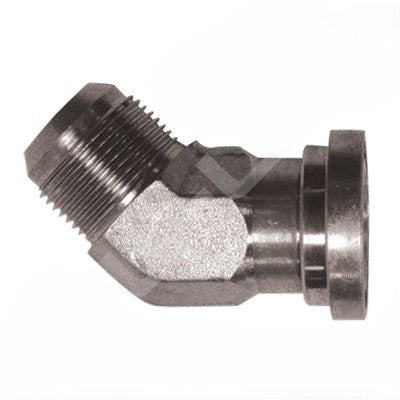

1703-16-12FG | JIC to Flange Elbow 45° | Forged Body | Code 61

Product Description

The 1703-16-12FG JIC to Flange 45° Elbow is a domestic steel forged hydraulic fitting engineered for medium-pressure hydraulic systems. Designed for heavy equipment and industrial applications, this 45-degree elbow provides a secure transition from Male JIC 37° flare tubing to a Code 61 flange block port.

Key advantages include:

• Forged domestic steel construction for high strength and durability
• 45° elbow design for controlled directional fluid routing
• Male JIC 37° flare threads for metal-to-metal sealing
• Code 61 flange connection for secure block integration
• Compact design to reduce stress on hoses and lines
• Reliable performance under vibration and moderate pressure cycling

This fitting is ideal for engineers and maintenance teams seeking leak-free, heavy equipment-grade flange adapters.

Specifications

• Material: Domestic Steel
• Shape: 45-degree Elbow
• Thread 1 Type: Male JIC (37° Flare)
• Thread 1 Nominal Size: 16
• Thread 1 Thread Size: 1 5/16-12
• Thread 2 Type: Code 61 Flange
• Thread 2 Nominal Size: 12
• Thread 2 Thread Size: 3/4
• Compliance: Code 61

Standards & Compliance

• Conforms to Code 61 pressure rating standards (up to 3,000 PSI)
• Compatible with SAE JIC / AN 37-degree flare hydraulic systems
• Designed for secure flange-to-block connections in industrial and heavy equipment applications

Features

• Forged steel 45° elbow for high-strength hydraulic systems
• Male JIC flare threads for metal-to-metal sealing
• Code 61 flange interface for block integration
• Compact, space-saving design
• Resistant to vibration and moderate shock
• Easy installation and maintenance
• Reliable, leak-free connection

Applications

• Connecting hydraulic pumps, valves, and manifolds to flange blocks
• Medium-pressure heavy equipment hydraulics
• Industrial fluid power systems
• OEM hydraulic assemblies
• Hydraulic hose routing at 45-degree angles
