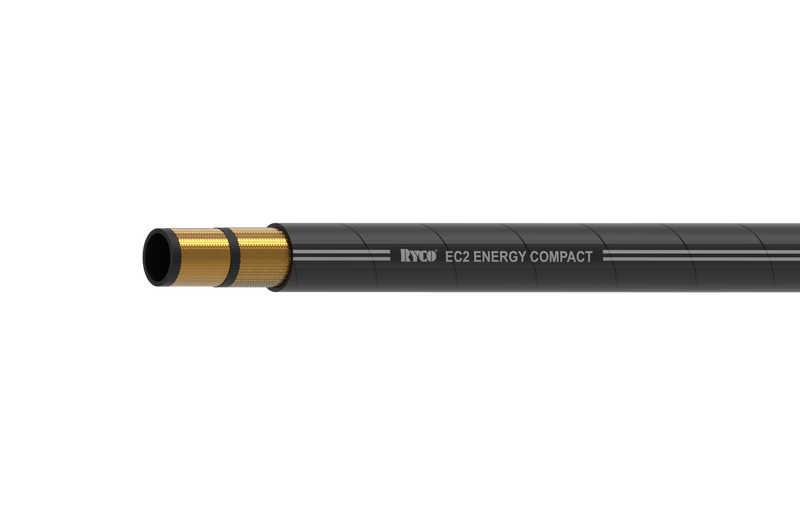

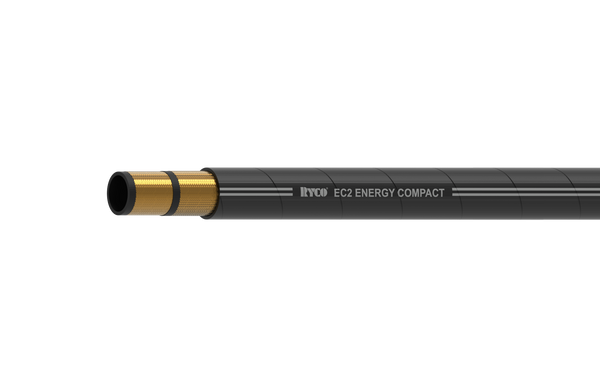

EC2 ENERGY Compact two wire braid hose

Available in Per foot or by the reel

RECOMMENDED FOR:
High pressure hydraulic oil lines. Ideal for high pressure use that requires a compact outside diameter and smaller bend radius than some other two wire braid hoses.

PERFORMANCE:
Meets or Exceeds the Performance Requirements of:
EN 857 Type 2SC, ISO 11237 Type 2SC, SAE 100R16.

TUBE:
Black, oil resistant synthetic rubber.

REINFORCEMENT:
Two braids of high tensile steel wire.

COVER:
Black, oil resistant synthetic rubber. No skiving required with T2000 Series Crimp Couplings.

TEMPERATURE RANGE:
From -40°C to +100°C (-40°F to +212°F).

WORKING PRESSURE:
Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).

COUPLINGS:
NON-SKIVE ONE-PIECE CRIMP
T2000 Series (sizes -04 to -16).
