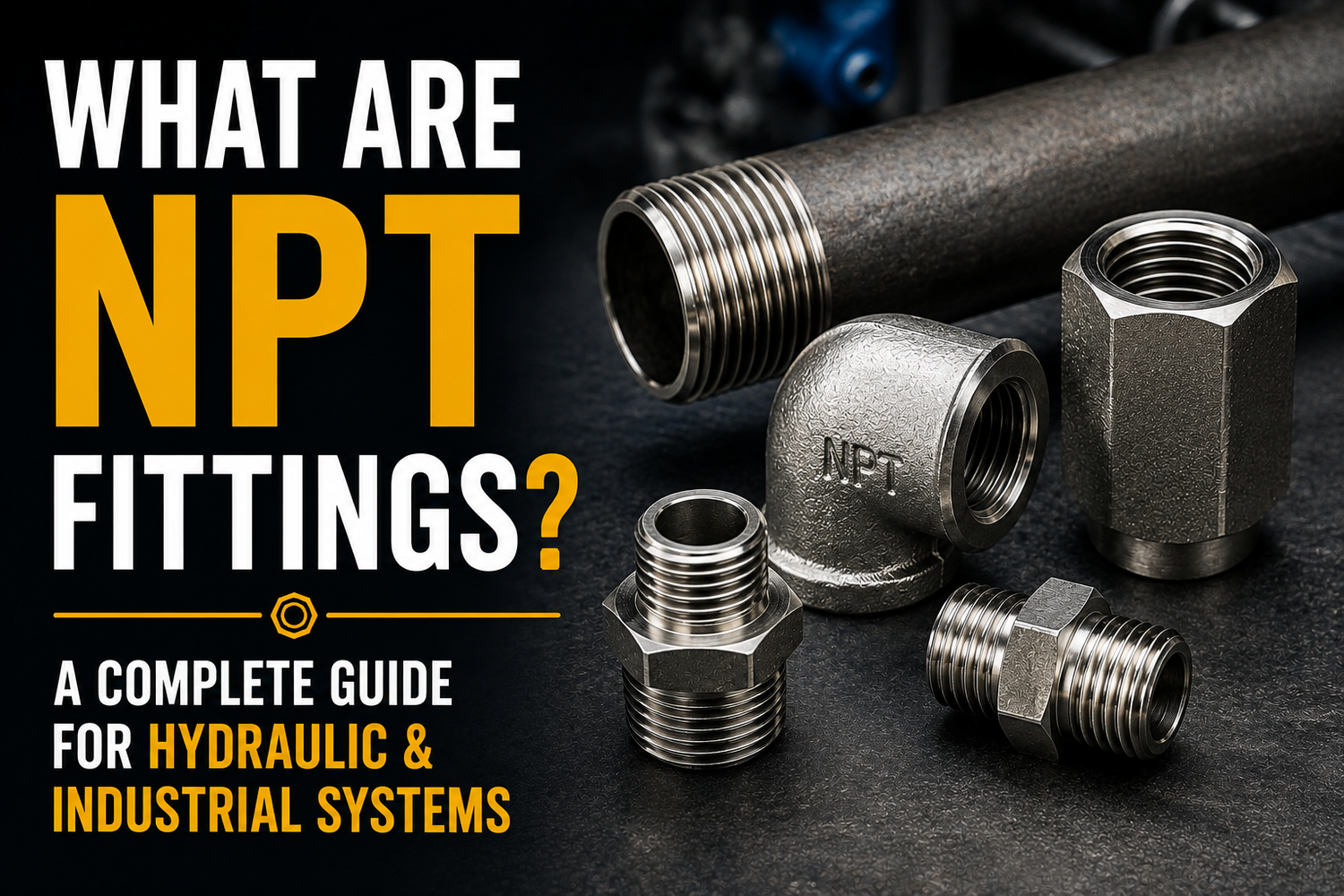

What Are NPT Fittings? A Complete Guide for Hydraulic & Industrial Systems
If you work with hydraulic systems, plumbing lines, or industrial fluid equipment, you have almost certainly come across the term NPT fittings. They are everywhere from oil and gas pipelines to construction machinery, agricultural equipment, and manufacturing plants. Yet many engineers and technicians still have questions about what NPT fittings actually are, how they work, and when to use them.
At Gear House Hydraulics, we stock a comprehensive range of NPT fittings in both steel and stainless steel to serve the diverse demands of our industrial, mobile, and instrumentation customers. In this guide, we break down everything you need to know about NPT fittings from their design and thread standards to their applications, advantages, and how to choose the right one for your system.
What Does NPT Stand For?
NPT stands for National Pipe Taper. It is a U.S. standard for tapered threads used on pipes and fittings to create leak-resistant mechanical joints in fluid and gas systems. The standard was originally developed by the American National Standards Institute (ANSI) and is governed today under ASME B1.20.1.
The "taper" in NPT refers to the slight conical angle of the threads — 1° 47' (approximately 1.7899°) per side, or a 3/4" taper per foot. When a male NPT fitting is threaded into a female NPT port, this taper causes the threads to wedge together as they tighten, forming a mechanical seal.
How Do NPT Threads Work?
The sealing mechanism of NPT fittings relies on the mechanical interference created by the tapered threads. As the male and female threads engage, the taper forces the threads to compress against each other radially. This creates a tight fit that resists fluid or gas from passing through.
However, NPT threads alone do not guarantee a leak-free seal. Most applications require the use of a thread sealant such as:
• PTFE tape (Teflon tape) wrapped around the male threads before assembly
• Pipe thread sealant compound (pipe dope) applied to threads for extra sealing in high-pressure applications
• Anaerobic thread sealants used in demanding industrial and hydraulic environments
At Gear House Hydraulics, we always recommend using the appropriate sealant for your system's pressure rating, media type, and temperature range.
NPT vs. NPTF: What Is the Difference?
You will often see both NPT and NPTF listed on fittings, and the distinction matters. NPTF stands for National Pipe Taper Fuel, also known as Dryseal threads. NPTF fittings are manufactured to tighter tolerances so that the thread crests and roots crush together upon assembly, creating a metal-to-metal seal without requiring any additional sealant.
In practice, NPT and NPTF threads are interchangeable a male NPTF fitting will thread into a female NPT port and vice versa. The difference is in the sealing performance. If you are working in a high-pressure hydraulic application or handling fuels and aggressive fluids, NPTF is generally the preferred choice. Gear House Hydraulics stocks both NPT and NPTF fittings to meet the full range of application needs.
Common NPT Fitting Types and Configurations
NPT fittings come in a wide variety of configurations to handle different routing, connection, and flow requirements. The most common types include:
• NPT Male Straight — A standard straight fitting with external tapered threads. Used to connect into female NPT ports on valves, manifolds, or equipment bodies.
• NPT Female Straight — Features internal tapered threads. Used as a coupler or adapter to accept male NPT connections.
• NPT Elbow (90° and 45°) — Redirects flow at an angle. Essential for routing hydraulic lines around obstacles in tight spaces.
• NPT Tee — Splits or combines flow in three directions. Available in equal or reducing configurations.
• NPT Cross — A four-way fitting for branching flow in multiple directions.
• NPT Hex Nipple — A short double-ended male fitting used to join two female NPT connections.
• NPT Reducing Fitting — Connects two NPT ports of different sizes, allowing system designers to transition between pipe sizes.
• NPT Swivel — Allows rotational movement at the connection point, reducing stress on hose assemblies and fittings.
• NPT Cap / Plug — Used to seal off unused ports in hydraulic manifolds, valve blocks, and cylinders.
Gear House Hydraulics carries all of these configurations in our Steel NPT Fittings and Stainless NPT Fittings product lines, available in sizes ranging from 1/8" NPT up to 2" NPT and beyond.
NPT Fitting Materials: Steel vs. Stainless Steel
Choosing the right material for your NPT fittings is critical for long-term reliability. At Gear House Hydraulics, we offer two primary material options:
Steel NPT Fittings
Carbon steel NPT fittings are the most widely used option in hydraulic and industrial applications. They offer excellent strength, high pressure ratings, and cost-effectiveness. Steel fittings are well suited for oil-based hydraulic fluids, petroleum products, air, and water-based systems where corrosion is not a primary concern. They are commonly found in construction, agriculture, manufacturing, and automotive hydraulic systems.
Stainless Steel NPT Fittings
Stainless steel NPT fittings are the preferred choice for corrosive environments, food-grade applications, marine systems, and chemical processing. Grade 316 stainless steel provides superior resistance to saltwater, acids, and oxidizing agents. While stainless fittings carry a higher price point than steel, they deliver exceptional longevity in harsh operating conditions, reducing total cost of ownership over time.
Where Are NPT Fittings Used?
NPT fittings are among the most versatile connection standards in the world. Gear House Hydraulics serves customers across multiple industries that rely on NPT fittings every day:
• Oil & Gas — NPT fittings are used extensively in wellheads, pipelines, instrumentation panels, and refinery equipment where reliable, leak-free connections are non-negotiable.
• Construction — Hydraulic cylinders, power units, and mobile equipment all rely on NPT ports for pressure gauges, sensors, and fluid line connections.
• Agriculture — Tractors, combines, irrigation systems, and spray equipment use NPT fittings to connect hydraulic hoses, control valves, and fluid reservoirs.
• Manufacturing — Pneumatic systems, lubrication lines, coolant systems, and hydraulic presses all depend on NPT fittings for reliable fluid management.
• Marine — Stainless steel NPT fittings are critical aboard vessels for hydraulic steering systems, bilge systems, and saltwater-resistant piping.
• Mining — Heavy-duty mining equipment requires high-pressure NPT fittings capable of handling demanding cycles and abrasive environments.
• Power Generation — Turbines, generators, and cooling systems use NPT fittings for oil and coolant management circuits.
• Automotive — Hydraulic brake systems, power steering units, and transmission coolers commonly feature NPT connection ports.
How to Identify NPT Thread Size
One of the most common sources of confusion when ordering NPT fittings is understanding thread sizing. NPT sizes do not correspond directly to the actual measured diameter of the fitting they refer to a nominal pipe size (NPS) that was historically based on the internal diameter of iron pipe.
To identify an NPT fitting size, you will need to measure the outside diameter (OD) of a male fitting or the inside diameter (ID) of a female fitting and match it to the nominal size chart. Common NPT sizes and their approximate OD measurements include:
• 1/8" NPT — approx. 0.405" OD
• 1/4" NPT — approx. 0.540" OD
• 3/8" NPT — approx. 0.675" OD
• 1/2" NPT — approx. 0.840" OD
• 3/4" NPT — approx. 1.050" OD
• 1" NPT — approx. 1.315" OD
• 1-1/4" NPT — approx. 1.660" OD
• 1-1/2" NPT — approx. 1.900" OD
• 2" NPT — approx. 2.375" OD
Thread pitch (threads per inch, or TPI) also varies by size and can be confirmed with a thread pitch gauge. If you are ever unsure about a fitting size, reach out to the Gear House Hydraulics team we can help you identify the correct specification before you order.
NPT Fittings vs. Other Hydraulic Thread Standards
NPT is one of several thread standards used in hydraulic and fluid systems worldwide. Understanding how NPT compares to other common standards helps ensure you select the right fitting for cross-compatibility:
• NPT vs. JIC (37° Flare) — JIC fittings use a 37° flare seat for sealing rather than thread interference. JIC is often preferred in high-pressure hydraulic circuits because it provides a more reliable metal-to-metal seal. Gear House Hydraulics carries a full line of JIC/AN fittings alongside NPT products.
• NPT vs. ORB (O-Ring Boss) — ORB fittings use a straight (UN/UNF) thread with an O-ring to seal against a flat machined surface. ORB offers superior leak resistance compared to NPT in dynamic hydraulic applications. Read our detailed ORB vs NPT comparison blog for an in-depth breakdown.
• NPT vs. ORFS (O-Ring Face Seal) — ORFS fittings provide the highest level of leak-free performance in hydraulics, using a face seal O-ring rather than thread-based sealing. They are the standard choice for critical high-pressure systems.
• NPT vs. BSPP/BSPT — British Standard Pipe Parallel (BSPP) and Taper (BSPT) threads are the metric-world equivalents of NPT. They are commonly found on European and Asian equipment. Although BSPT and NPT are both tapered, they are NOT interchangeable due to differences in thread angle and pitch. Gear House Hydraulics stocks both BSPP/BSPT and NPT fittings.
Best Practices for Installing NPT Fittings
Proper installation is essential to getting a reliable, leak-free NPT connection. Follow these best practices every time:
• Inspect threads before assembly remove any burrs, dirt, or damage that could compromise the seal.
• Apply PTFE tape or thread sealant compound to the male threads only, starting at the first thread and wrapping in the direction of thread engagement.
• Hand-tighten first to ensure the threads are properly engaged and not cross-threaded.
• Use a wrench to tighten 2 to 3 additional turns past hand-tight over-tightening can crack fittings or distort female ports.
• Do not back off NPT fittings to adjust alignment after tightening. Backing off breaks the seal. Use a swivel or union fitting if rotational adjustment is needed.
• Always pressure-test the system after assembly and inspect for leaks before putting equipment into full service.
Why Choose Gear House Hydraulics for Your NPT Fittings?
At Gear House Hydraulics, we are more than just a fitting supplier. We are your technical partner for hydraulic solutions. Here is what sets us apart:
• Extensive Inventory — We stock steel and stainless steel NPT fittings in a wide range of sizes and configurations, ready to ship.
• Nationwide Shipping — Fast and reliable delivery across the entire United States so you get the parts you need without delay.
• 24/7 Emergency Service — Gear House Hydraulics understands that hydraulic failures do not follow a 9-to-5 schedule. We are here when you need us most.
• Expert Technical Support — Our team brings over 20 years of hydraulic experience to help you choose the right fitting, sealant, and installation method for your specific application.
• Custom Hose Assemblies — Need a complete hydraulic line solution? We build custom hose assemblies to your exact specifications.
• Trusted Brands — We carry products from industry-leading brands including RYCO, New-Line, and Tompkins, ensuring you receive quality-tested components for every job.
• Competitive Pricing — Quality hydraulic components should not break the budget. We offer competitive pricing on all our NPT fitting product lines.
Final Thoughts
NPT fittings remain one of the most widely used and trusted connection standards in hydraulic and fluid systems across North America. Their tapered thread design, broad availability, and compatibility with a wide range of sealants make them an enduring choice for engineers and technicians in virtually every industrial sector.
Whether you are building a new hydraulic system from the ground up, replacing worn fittings, or troubleshooting a leak, Gear House Hydraulics has the NPT fittings, technical knowledge, and responsive service you need to get the job done right.
Browse our full range of Steel NPT Fittings and Stainless NPT Fittings at gearhousehydraulics.com, or call us at +1 (209) 629-7113. Our team is ready to help.
