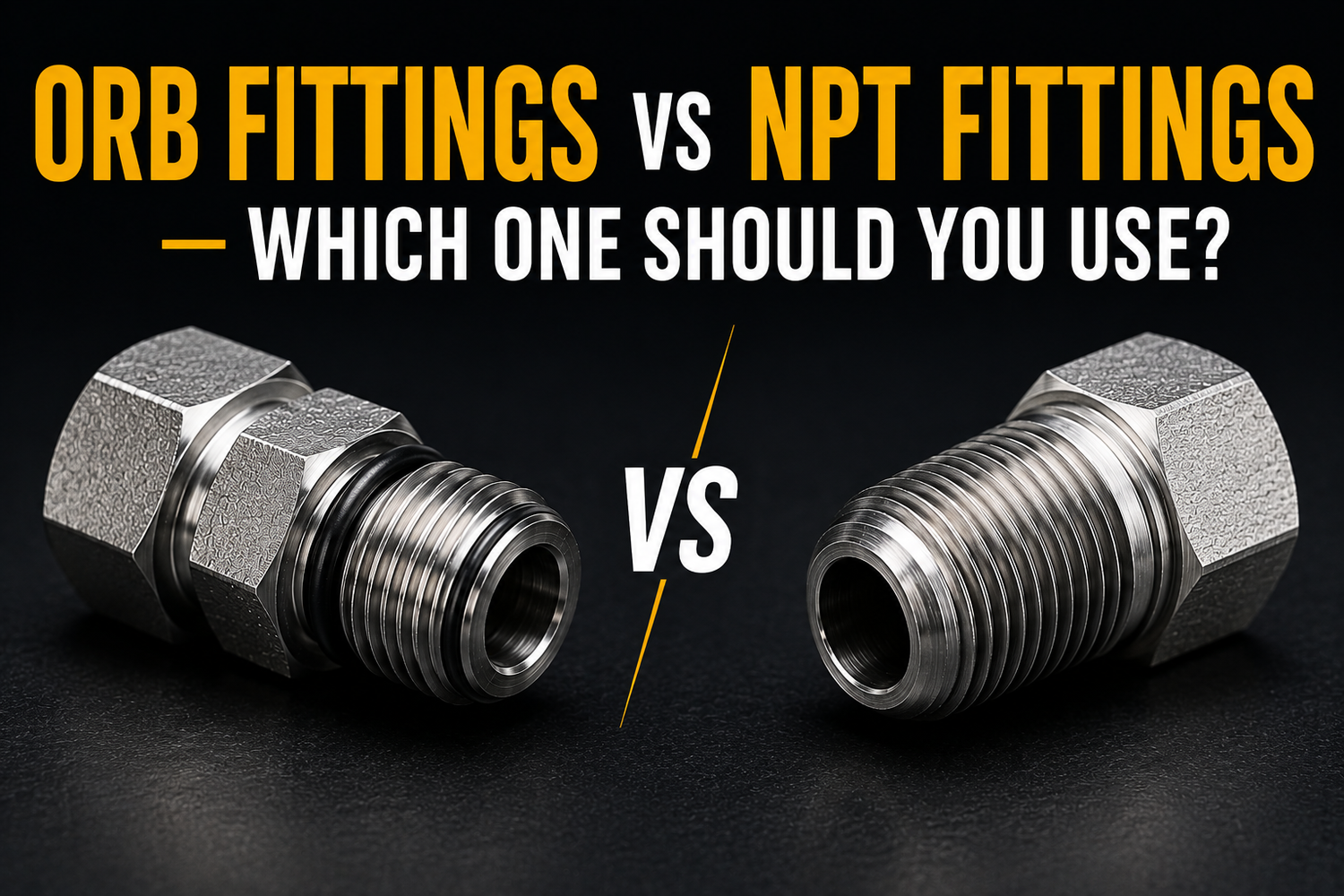

ORB vs NPT Fittings: Which One Should You Use?

Choosing the wrong fitting in a hydraulic or fluid system isn't just a matter of inconvenience it can mean costly leaks, system failures, and serious safety risks. Two of the most commonly compared fitting types in industrial and hydraulic applications are ORB (O-Ring Boss) fittings and NPT (National Pipe Taper) fittings.

At Gear house Hydraulics, we work with both every day. This guide breaks down exactly how each fitting works, where each excels, and which one you should choose for your specific application.

What Are ORB Fittings?

ORB stands for O-Ring Boss. These fittings use a straight (non-tapered) thread combined with an elastomeric O-ring seated at the face of the port. The O-ring creates a metal-to-metal seal as the fitting is tightened not through thread deformation.

Key Characteristics of ORB Fittings:

•       Straight UN/UNF thread profile

•       O-ring provides the primary seal  no thread sealant required

•       Rated for very high pressures (often 6,000 psi and above)

•       Highly reusable O-ring can be replaced without damaging threads

•       Common in mobile hydraulics, industrial machinery, and high-pressure systems



💡 PRO TIP

ORB fittings are the go-to choice for any system where leak prevention is non-negotiable. Their face-seal design means no reliance on thread tightness for sealing integrity.

What Are NPT Fittings?

NPT stands for National Pipe Taper. These fittings use a tapered thread that seals by wedging threads together as the fitting is tightened. The taper creates an interference fit  and in most cases, you'll still need Teflon tape or a thread sealant compound to achieve a reliable seal.

Key Characteristics of NPT Fittings:

•       Tapered thread — thread pitch decreases toward the end

•       Sealing relies on thread deformation and sealant (Teflon tape or pipe dope)

•       Pressure rating typically up to 3,000 psi depending on material and size

•       Widely available and lower cost upfront

•       Common in plumbing, pneumatics, and general industrial applications



⚠️ IMPORTANT

Because NPT fittings rely on thread deformation to seal, they are semi-permanent. Repeated removal and reinstallation can damage threads and compromise the seal — increasing leak risk over time.

ORB vs NPT: Side-by-Side Comparison



Feature	ORB Fittings	NPT Fittings	Best For
Feature	Seal Type	O-Ring (face seal)	Tapered thread seal
Feature	Thread Type	Straight (UN/UNF)	Tapered (American National)
Feature	Pressure Rating	Very High (6,000+ psi)	Moderate (up to ~3,000 psi)
Feature	Leak Resistance	Excellent	Good (with sealant)
Feature	Reusability	High	Low (thread distortion)
Feature	Cost	Higher upfront	Lower upfront
Feature	Common Use	Hydraulic systems, equipment	Plumbing, pneumatics, general
Feature	Sealant Needed?	No (O-ring does the job)	Yes (Teflon tape / thread sealant)

When to Use ORB Fittings

Choose ORB fittings when:

•       Your system operates at high pressure (above 3,000 psi)

•       Zero leakage is critical (hydraulic cylinders, mobile equipment, test rigs)

•       You need frequent disassembly for maintenance or inspection

•       You're working in environments where Teflon tape or pipe sealant is impractical

•       Long service life and fitting reusability are priorities



ORB fittings are standard in most professional hydraulic systems from excavators and agricultural machinery to industrial presses and power units. At Gear house Hydraulics, we stock a full range of ORB adapters, plugs, and connectors for SAE and metric applications.

When to Use NPT Fittings

Choose NPT fittings when:

•       Your system operates at low to moderate pressures

•       You're working in water, air, or general fluid systems (not high-pressure hydraulics)

•       Budget is a primary concern and the application is low-risk

•       The connection point will not require frequent removal

•       You're replacing an existing NPT port in legacy equipment



NPT fittings are the backbone of plumbing, compressed air lines, and many general-purpose industrial setups. They're economical and universally available just make sure you're not using them where ORB performance is required.

Can You Mix ORB and NPT Fittings?

Yes — with the right adapter. ORB-to-NPT adapters are widely available and allow you to transition between the two standards within the same system. However, always be mindful of the pressure rating of the weakest component in the line.

🔧 GEARHOUSE TIP

When adapting between ORB and NPT, always use a properly rated adapter and apply thread sealant on the NPT side only. Never apply sealant to the ORB O-ring it can cause swelling and premature seal failure.

Common Mistakes to Avoid

With ORB Fittings:

•       Over-tightening — can damage the O-ring and actually reduce sealing effectiveness

•       Using the wrong O-ring material for the fluid (e.g., Buna-N in phosphate ester fluid)

•       Ignoring O-ring condition during reassembly — always inspect and replace if worn

With NPT Fittings:

•       Under-applying sealant leads to slow weeping leaks over time

•       Cross-threading during installation especially in soft materials like aluminum

•       Over-tightening can crack ports, especially in cast housings

•       Using in high-pressure hydraulics where they are not rated

Final Verdict: Which Should You Choose?

For hydraulic applications especially mobile equipment, industrial machinery, or any system where pressure, reliability, and leak prevention matter ORB fittings are the professional standard. They cost more upfront but deliver better performance, longer service life, and far fewer headaches.

For general plumbing, compressed air, or low-pressure fluid systems where NPT ports are already present, NPT fittings remain a cost-effective, practical solution.



✅ BOTTOM LINE

When in doubt, go ORB. The marginal cost difference is negligible compared to the cost of a leak, a failed fitting, or unplanned downtime.
