FS6502-16-16 SAE ORFS Male x SAE ORFS Female Swivel 45° Elbow

FS6502-16-16 SAE ORFS Male × SAE ORFS Female Swivel 45° Elbow | Steel Hydraulic Fitting

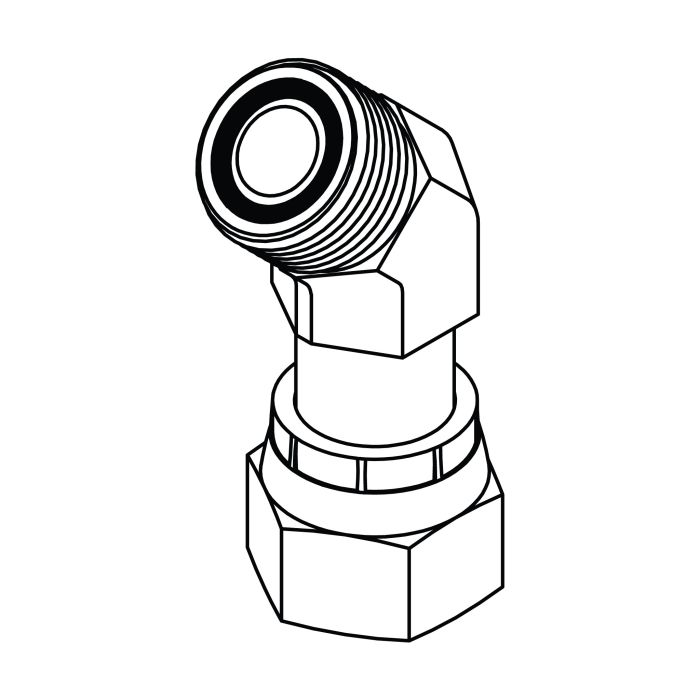

The FS6502-16-16 SAE ORFS Male × SAE ORFS Female Swivel 45° Elbow is a hydraulic fitting designed to change flow direction by 45° while maintaining a secure ORFS-to-ORFS connection. It features a Male ORFS (16) end and a Female ORFS swivel (16) end, providing easier alignment during installation while ensuring a strong, leak-free seal in high-pressure hydraulic systems.

Manufactured from high-strength steel and engineered to SAE 520221 standards, this fitting delivers reliable performance in demanding hydraulic applications with strong resistance to vibration, pressure spikes, and mechanical stress.

Specifications

• Part Number: FS6502-16-16
• Material: Steel
• Shape: 45° Elbow
• Thread 1 Type: Male O-Ring Face Seal (ORFS)
• Thread 1 Nominal Size: 16
• Thread 1 Size: 1-7/16-12 UNF
• Thread 2 Type: Female O-Ring Face Seal Swivel
• Thread 2 Nominal Size: 16
• Thread 2 Size: 1-7/16-12 UNF
