FS6500-16-16 SAE ORFS Male x SAE ORFS Female Swivel 90° Elbow

FS6500-16-16 SAE ORFS Male × SAE ORFS Female Swivel 90° Elbow | Steel Hydraulic Fitting

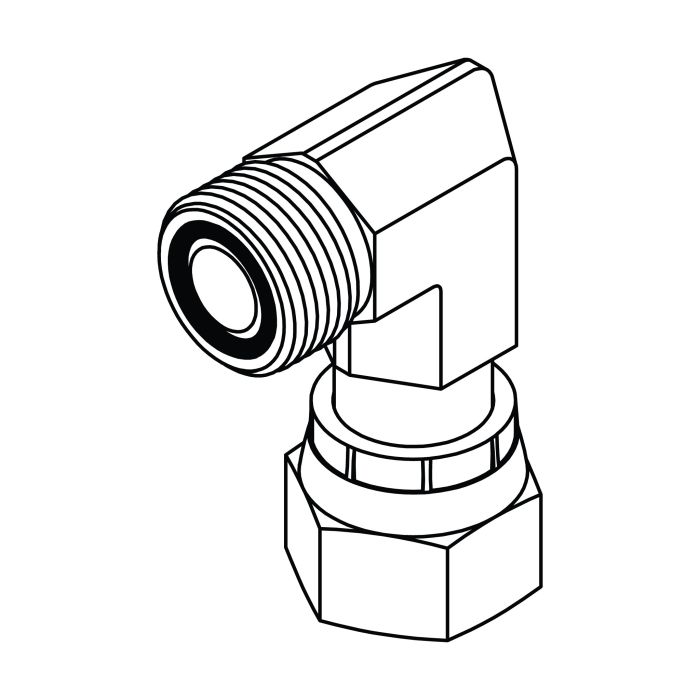

The FS6500-16-16 SAE ORFS Male × SAE ORFS Female Swivel 90° Elbow is a hydraulic elbow fitting designed to change flow direction by 90° while connecting same-size ORFS hydraulic lines. It features a Male ORFS (16) end and a Female ORFS swivel (16) end, enabling flexible installation alignment while maintaining a strong, leak-free seal.

Manufactured from high-strength steel and engineered to SAE 520221 standards, this fitting delivers reliable performance in high-pressure hydraulic systems with excellent resistance to vibration, shock loads, and long-term wear.

Specifications

• Part Number: FS6500-16-16
• Material: Steel
• Shape: 90° Elbow
• Standard Compliance: SAE 520221

End 1

• Thread Type: Male O-Ring Face Seal (ORFS)
• Nominal Size: 16
• Thread Size: 1-7/16-12 UNF

End 2

• Thread Type: Female O-Ring Face Seal (ORFS) Swivel
• Nominal Size: 16
• Thread Size: 1-7/16-12 UNF
