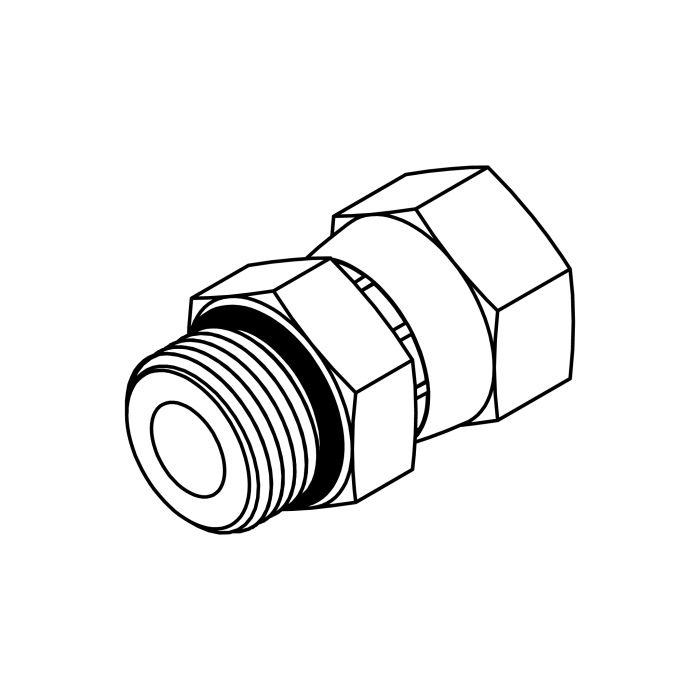

6402-12-12 O-Ring to JIC Swivel

6402-12-12 O-Ring to JIC Swivel

Steel hydraulic straight adapter designed to connect a 1 1/16-12 Male O-Ring Boss (ORB) (-12) to a 1 1/16-12 Female JIC Swivel (-12). It provides a reliable transition between ORB sealing and JIC 37° flare systems, ensuring leak-free performance in medium to high-pressure hydraulic applications.

Specifications

Material: Steel
Shape: Straight
Thread 1 Type: Male O-Ring (ORB)
Thread 1 Nominal Size: 12
Thread 1: 1 1/16-12
Thread 2 Type: Female JIC Swivel
Thread 2 Nominal Size: 12
Thread 2: 1 1/16-12
