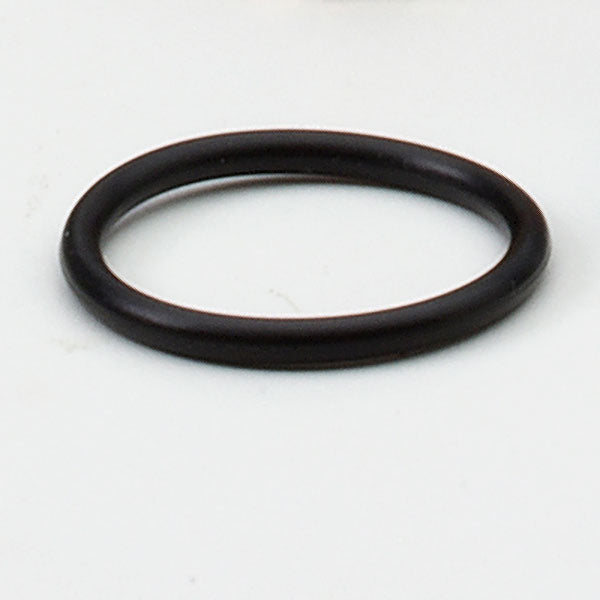

FS4000-V Viton® 75 Durometer Face Seal O-Ring

Description:

The FS4000-V Viton® 75 Durometer Face Seal O-Ring collection is engineered for high-performance hydraulic systems where elevated temperatures, aggressive fluids, and long service life are critical requirements. These O-rings are specifically designed for use with SAE O-Ring Face Seal (ORFS) adapters and fittings, providing reliable, leak-free sealing in demanding industrial and mobile hydraulic environments.

Material & Performance Characteristics

• Material: Viton® Fluoroelastomer

• Hardness: 75 Durometer

• Seal Type: O-Ring Face Seal (ORFS)

• Chemical Resistance: Excellent

• Temperature Resistance: High


Pressure Ratings

• Working pressure: Up to 6000 PSI

• For applications operating at 5000 PSI and above, correct fitting selection and installation are critical.

Applications

• SAE ORFS hydraulic adapters and fittings

• High-temperature hydraulic systems

• Industrial fluid power equipment

• Chemical processing hydraulic circuits

• Mobile equipment operating in extreme environments


Manufactured from Viton® Fluoroelastomer with a 75-durometer hardness, these face seal O-rings offer superior resistance to heat, oils, fuels, hydraulic fluids, and a wide range of chemicals. Viton® is well-known for maintaining elasticity and sealing integrity even when exposed to sustained high temperatures, making these O-rings an excellent choice for applications where standard Buna-N materials may prematurely degrade.

The ORFS sealing method isolates the sealing surface from thread distortion and vibration, ensuring consistent compression across the O-ring face. When paired with Viton® material properties, the FS4000-V series delivers exceptional sealing reliability in systems subject to thermal cycling, pressure fluctuations, and chemical exposure.
