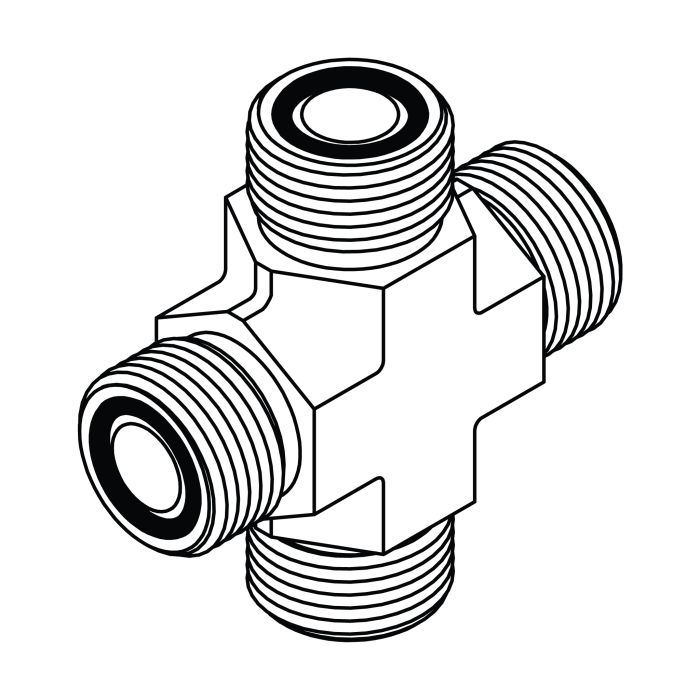

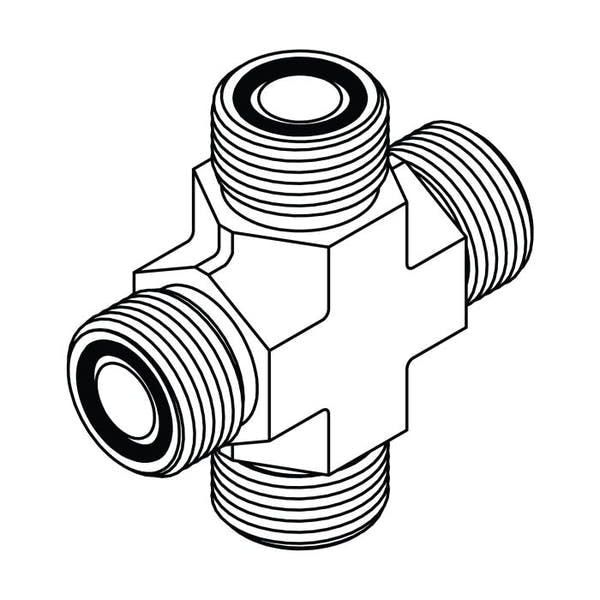

FS2650 ORFS Union Cross | Hydraulic Cross Fittings with O-Ring Face Seal
Collection Description
The FS2650 ORFS Union Cross collection consists of forged steel four-way hydraulic cross fittings designed for SAE O-Ring Face Seal (ORFS) connections. These union crosses enable four fluid lines to intersect at a single point while maintaining a leak-resistant seal using flat-face O-ring geometry.
A union cross is often utilized in complex hydraulic manifolds and distribution networks where multiple branch lines must be arranged compactly with consistent sealing and minimal pressure loss.
Pressure Ratings
- Engineered for high-pressure hydraulic systems
- ORFS flat-face sealing ensures reliable performance under dynamic conditions
- Working pressure varies by union cross size and system configuration
- Flat face O-ring seal minimizes leakage potential and flange torque issues
Design & Material Overview
- Material: Forged carbon steel for enhanced strength and durability
- Shape: Four-way union cross configuration
-
Connection Type:
- ORFS female swivel or male ports (as specified per SKU)
- Flat face with O-ring sealing per SAE J1453 / ISO 8434-3 standards
- Precision machined surfaces for consistent sealing geometry
- Corrosion-protected finish for extended service life
- Designed to maintain sealing integrity in vibration and high-shock environments
Industries & Use Cases
FS2650 ORFS union crosses are commonly used in:
- Hydraulic power units and manifolds requiring multiple branch distribution
- Industrial fluid power systems with complex line routing
- Mobile equipment hydraulics where space is limited
- Manufacturing and process automation distribution points
- Agricultural, construction, and material handling machinery
- OEM assemblies requiring symmetric fluid branch connections
Standards / Compliance
- ORFS connections compliant with SAE J1453 / ISO 8434-3
- Union cross body designed for high-pressure fluid environments
- Forged construction meets industrial reliability expectations
Applications
- Four-way fluid distribution in hydraulic circuits
- Junction points in manifolds and control systems
- Consolidated routing for branch lines
- Hydraulic block connections requiring 90° cross layouts
- Systems needing robust, leak-resistant ORFS sealing
The ORFS connection style provides a robust flat-face seal that resists vibration, pressure cycling, and mechanical shock, making FS2650 union crosses suitable for industrial, mobile, and OEM hydraulic systems.
