Reduce Connection Size Without Rebuilding the Line

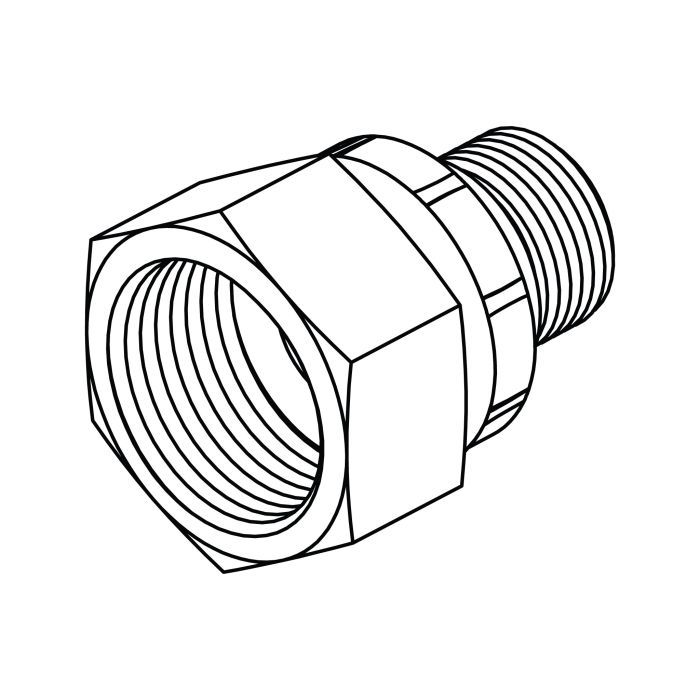

The FS2406 ORFS Swivel to ORFS Reducer is designed for hydraulic assemblies that require a transition between different ORFS connection sizes.
Instead of replacing or redesigning an entire hydraulic line to accommodate a different tube size, the reducer provides a practical connection between the required sizes while maintaining the ORFS fitting system.
Swivel Design for Easier Hydraulic Assembly
The swivel configuration provides flexibility during installation and connection alignment. This can be particularly useful when hydraulic lines or components are difficult to position or when easier assembly access is needed.
The swivel design helps make the FS2406 a practical choice for complex hydraulic routing and equipment where connection positioning matters.
ORFS Face-Seal Connection
FS2406 belongs to the ORFS (O-Ring Face Seal) fitting family. ORFS connections use an elastomeric O-ring at the fitting face to provide the primary sealing interface.
When correctly matched and installed with compatible ORFS components, the design is well suited to hydraulic systems exposed to pressure, vibration, and mechanical movement.
Steel Construction for Demanding Service
FS2406 ORFS Swivel to ORFS Reducers are listed with steel construction, making them suitable for demanding hydraulic equipment and fluid-power applications.
They are intended for applications where fittings may experience:
- High hydraulic pressure
- Continuous mechanical shock
- Vibration
- Dynamic equipment movement
- Heavy-duty operating conditions
Multiple Reducing Sizes Available
The FS2406 series provides a broad range of reducing combinations. Current options include:
- FS2406-06-04
- FS2406-08-04
- FS2406-08-06
- FS2406-10-04
- FS2406-10-06
- FS2406-10-08
- FS2406-12-04
- FS2406-12-06
- FS2406-12-08
- FS2406-12-10
- FS2406-16-08
- FS2406-16-10
- FS2406-16-12
- FS2406-20-12
- FS2406-20-16
- FS2406-20-24
- FS2406-24-20
These options cover a wide range of ORFS tube-size transitions. Always verify the required ORFS sizes before ordering.
Built for High-Pressure Hydraulic Systems
FS2406 is listed for working pressures up to 6,000 PSI, with actual pressure capability depending on tube size and fitting size.
It is suitable for hydraulic systems operating under demanding conditions, including applications with continuous mechanical shock. For systems operating at extreme pressures, verify the complete assembly rating and compatibility of all connected components.
Common Applications
Use FS2406 ORFS Swivel to ORFS Reducers in:
- High-pressure hydraulic lines
- Mobile hydraulic equipment
- Construction machinery
- Industrial fluid-power systems
- Heavy equipment
- Hydraulic tube assemblies
- Machinery exposed to vibration
- Systems requiring different ORFS connection sizes
- Hydraulic installations where swivel alignment is beneficial
Why Choose FS2406?
- ORFS × ORFS connection
- Reducing configuration for different connection sizes
- Swivel design for easier alignment and assembly
- Steel construction
- Suitable for high-pressure hydraulic applications
- Designed for systems exposed to vibration and mechanical shock
- Multiple reducing sizes available
- Working pressure up to 6,000 PSI, depending on size
Get FS2406 ORFS Swivel Reducers From Gear House Hydraulics
When your hydraulic assembly needs a size reduction without giving up ORFS connection compatibility, FS2406 provides a practical solution. The swivel configuration adds installation flexibility while the available size combinations make it easier to match different ORFS tube requirements.
Gear House Hydraulics offers FS2406 ORFS Swivel to ORFS Reducers in multiple configurations for demanding hydraulic and fluid-power applications.
Choose the correct FS2406 size combination for your tubing and complete your hydraulic connection with the right ORFS reducer.
FAQs
What is an FS2406 ORFS Swivel to ORFS Reducer?
FS2406 is a reducing hydraulic fitting designed to connect different-size ORFS connections while providing a swivel configuration for installation flexibility.
What type of connections does FS2406 use?
FS2406 uses ORFS × ORFS connections.
What is the purpose of the swivel design?
The swivel configuration provides additional flexibility for positioning and assembly, which can be useful when hydraulic components have limited installation access.
What material is FS2406 made from?
The FS2406 collection is listed with steel as the material.
What pressure can FS2406 handle?
The listed working pressure is up to 6,000 PSI, depending on tube and fitting size.
Is FS2406 a reducing fitting?
Yes. FS2406 is specifically designed to connect different ORFS sizes, with current options ranging from combinations such as -06-04 through larger configurations such as -24-20.
Where are FS2406 reducers used?
They are suitable for high-pressure hydraulic systems, mobile equipment, construction machinery, industrial fluid-power systems, and applications exposed to vibration and mechanical shock.
How do I choose the correct FS2406 size?
Identify the two ORFS connection or tube sizes required by your hydraulic assembly, then select the matching FS2406 reducing combination.
Is FS2406 suitable for high-pressure applications?
Yes. The series is listed for working pressures up to 6,000 PSI, depending on size and fitting configuration. Always confirm the complete system rating before installation.
