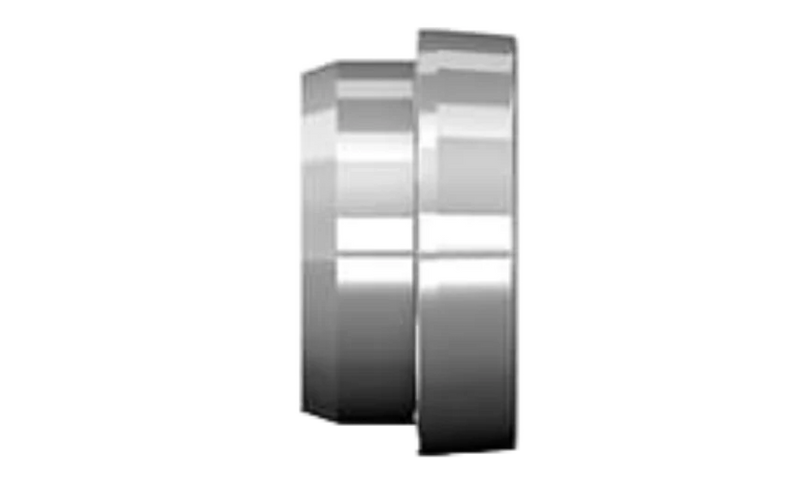

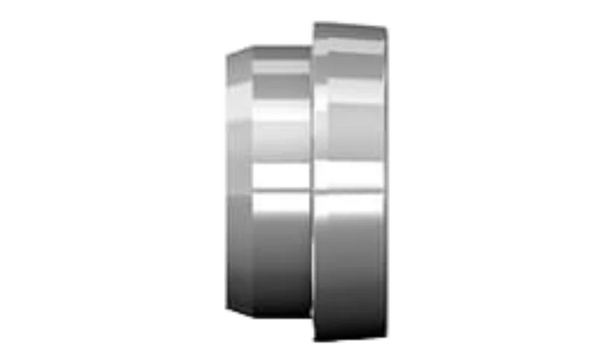

FS0319SSPF ORFS ParFlange Sleeves – Stainless Steel
The FS0319SSPF ORFS ParFlange Sleeve series is engineered for high-pressure, high-vibration hydraulic systems where traditional flared or brazed connections may fail.
These sleeves are designed to work with ORFS (O-Ring Face Seal) fittings, providing a flat-face sealing surface that delivers superior leak resistance, even under extreme pressure and dynamic loads.
Material & Standards
- Material: 316 Stainless Steel
- Shape: Forged Sleeve
- Standards: SAE J514, SAE J1453, SAE J1926
Manufactured from forged 316 stainless steel, FS0319SSPF sleeves offer excellent corrosion resistance and mechanical strength, making them suitable for harsh industrial, marine, and chemical environments.
The ParFlange design refers to Parker’s cold-forming process, which creates a precise flange directly on the tube without brazing. This method improves joint integrity, reduces installation time, and eliminates heat-affected weaknesses.
These sleeves are widely used in hydraulic systems requiring consistent sealing, long service life, and resistance to vibration-induced loosening.
