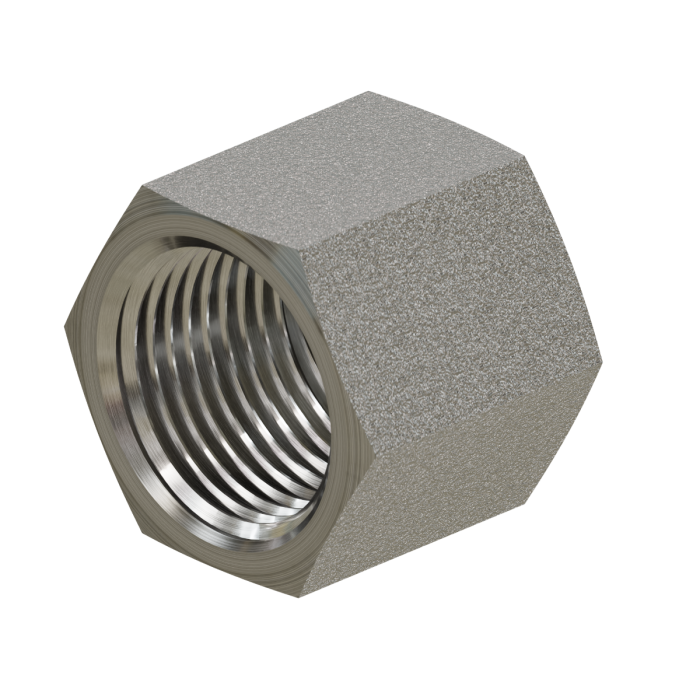

FS0318SS ORFS (O-Ring Face Seal) Female Standard Nuts – Stainless Steel

Overview

The FS0318SS ORFS Female Standard Nut is manufactured from high-grade 316 stainless steel and is designed for use in O-Ring Face Seal (ORFS) hydraulic systems. These fittings deliver a reliable, leak-free connection in high-pressure environments where vibration and pressure fluctuations are common. The straight-thread ORFS design ensures consistent sealing through an elastomeric O-ring rather than thread deformation, improving system longevity and serviceability.

Specifications

• Material: 316 Stainless Steel

• Shape: Female Nut

• Manufacturing: Forged

• Thread Type: ORFS (O-Ring Face Seal)

• Standards: SAE 520110, SAE J514, SAE 520101


Features

• Excellent corrosion resistance

• Designed to prevent over-tightening

• Easy assembly and disassembly

• Compatible with FS0319SS sleeves


Applications

• Hydraulic systems

• Industrial machinery

• Oil & gas equipment

• Mobile and stationary fluid power systems
