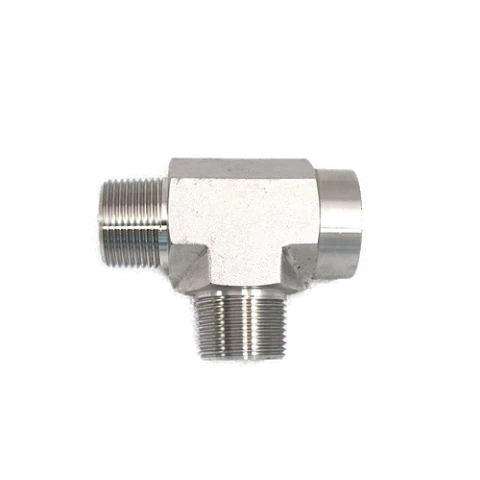

5603 NPTF Pipe Run Tee

The 5603 NPTF Pipe Run Tee provides a three-way connection for hydraulic and fluid-transfer systems where a main line requires an additional branch connection. Its run tee configuration creates a practical connection point while maintaining a compact fitting design.

Gear House Hydraulics lists the 5603 for lubrication, instrumentation, and most high-pressure hydraulic systems, with working pressures up to 5,000 PSI, depending on tube and fitting size.

Three-Way Run Tee Design

The 5603 features a T-shaped configuration that allows a hydraulic line to continue through the main run while providing an additional connection point.

This design can help simplify hydraulic routing around pumps, valves, manifolds, cylinders, instrumentation components, and other equipment where a branch connection is required.

NPTF Threaded Design

The 5603 is identified as an NPTF Pipe Run Tee. NPTF, or National Pipe Taper Fuel, uses tapered pipe threads designed for compatible threaded fluid connections.

Before installation, verify the thread specification and required connection size of the mating components. Proper thread matching is important for creating a dependable hydraulic connection.

Steel Construction

The 5603 is listed with steel construction, providing a strong and durable fitting body for hydraulic and fluid-transfer assemblies.

Steel construction makes the 5603 a practical choice for hydraulic systems that require a robust threaded fitting for demanding service conditions.

Up to 5,000 PSI Working Pressure

The 5603 collection lists working pressures up to 5,000 PSI. The page notes that working pressure varies depending on tube and fitting size.

For high-pressure installations, confirm that the selected fitting size and the complete hydraulic assembly are suitable for the actual operating pressure, fluid, temperature, and service conditions.

Available Configurations

The 5603 is currently listed in configurations ranging from 1/8 × 1/8 through 1-1/2 × 1-1/2. Available sizes shown on the collection include 1/8, 1/4, 3/8, 1/2, 3/4, 1, 1-1/4, and 1-1/2 inch configurations.

Choose the configuration that matches the required connections in your hydraulic assembly.

Reliable Hydraulic Line Branching

A run tee provides a practical way to introduce an additional connection into an existing hydraulic line. The 5603 combines the main run and branch connection into one fitting, helping reduce the need for multiple separate components.

This can help maintain a straightforward and organized hydraulic layout where fluid needs to continue through the main line while also reaching another connected component.

Built for Demanding Hydraulic Systems

The 5603 is listed for lubrication, instrumentation, and most high-pressure hydraulic systems.

Its three-way configuration makes it useful for hydraulic circuits and fluid-transfer assemblies where a branch connection is needed within an existing line.

Compact Hydraulic Connection

The compact run tee design helps provide multiple connection points without requiring a complicated fitting arrangement.

The 5603 can help organize hydraulic lines around closely positioned components while maintaining a direct connection through the main run and an additional branch point.

Installation Considerations

Before installing the 5603:

• Confirm the required NPTF thread specification.
• Verify the correct connection size.
• Inspect and clean the threads before assembly.
• Use the appropriate thread-sealing method for the hydraulic system.
• Position the tee correctly before final tightening.
• Avoid excessive tightening that could damage threads or connected components.
• Confirm the fitting is suitable for the required pressure and service conditions.
• Check the complete hydraulic assembly before operation.

Proper fitting selection and installation help maintain a dependable hydraulic connection.

Why Choose the 5603?

The 5603 NPTF Pipe Run Tee provides a practical three-way connection for hydraulic and fluid-transfer assemblies.

Key features include:

• NPTF Pipe Run Tee configuration
• Three-way connection design
• Steel construction
• Working pressure up to 5,000 PSI
• Multiple connection configurations
• Compact hydraulic line branching
• Suitable for lubrication and instrumentation systems
• Suitable for most high-pressure hydraulic systems

Select the Correct 5603 Configuration

Selecting the correct 5603 starts with identifying the required connection size and NPTF thread specification for your hydraulic assembly.

The available configurations range from 1/8 × 1/8 through 1-1/2 × 1-1/2. Verify the required size and pressure requirements before ordering.

For high-pressure systems, also confirm that the selected configuration meets the operating requirements of the complete assembly.

Gear House Hydraulics 5603 NPTF Pipe Run Tee

Gear House Hydraulics supplies the 5603 NPTF Pipe Run Tee for hydraulic, lubrication, instrumentation, and fluid-transfer connection requirements.

Its three-way run tee design provides a straightforward way to add a branch connection while maintaining a continuous hydraulic routing path through the fitting.

Choose the correct configuration for your assembly and verify the thread, pressure, and service requirements before installation.

FAQs

What is a 5603 NPTF Pipe Run Tee?

The 5603 is an NPTF Pipe Run Tee designed to create a three-way connection within hydraulic and fluid-transfer systems.

What material is the 5603 made from?

The 5603 is listed with steel construction.

What is the working pressure of the 5603?

The collection lists working pressures up to 5,000 PSI, with working pressure varying depending on tube and fitting size.

What sizes are available for the 5603?

The current collection shows configurations from 1/8 × 1/8 through 1-1/2 × 1-1/2.

Where can the 5603 be used?

The 5603 is listed for lubrication, instrumentation, and most high-pressure hydraulic systems.

What is a pipe run tee used for?

A pipe run tee provides a three-way connection where a main hydraulic line continues through the fitting while an additional branch connection is created.

Is the 5603 suitable for high-pressure hydraulic systems?

The Gear House Hydraulics page lists the 5603 for most high-pressure hydraulic systems and shows working pressures up to 5,000 PSI. The appropriate rating should be confirmed for the selected fitting size and operating conditions.

How do I choose the correct 5603?

Confirm the required NPTF thread specification and connection size, then verify that the selected configuration meets the pressure and service requirements of your hydraulic system.
