5500 NPTF Pipe 90° Elbow, Male

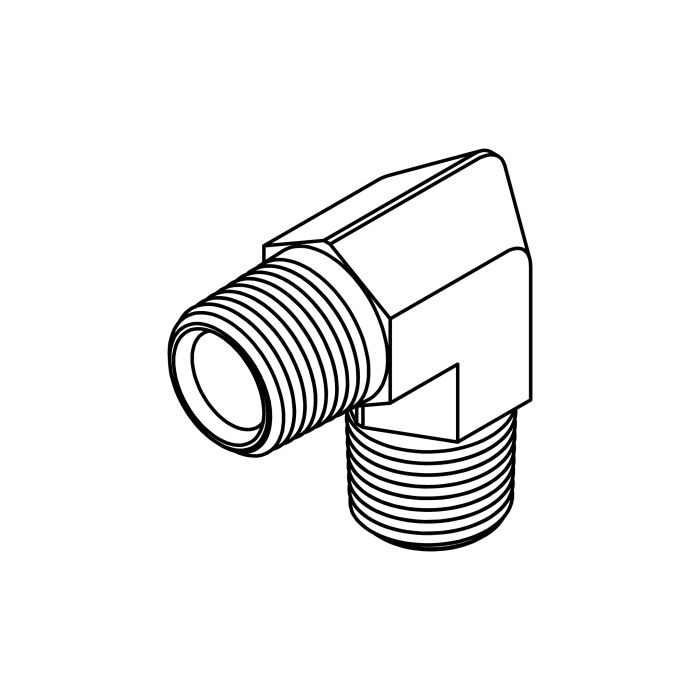

Route hydraulic lines through a clean 90° turn with the 5500 Male NPTF × Male NPTF Elbow. High-strength carbon steel construction and precision threads provide a compact, reliable connection for demanding hydraulic systems.
Filter Products
Material
Size
The 5500 NPTF Pipe 90° Elbow provides a practical way to change hydraulic flow direction while connecting two male NPTF ports. Its 90° configuration helps route pipe or hydraulic lines through tighter layouts without requiring a separate directional adapter. Gear House Hydraulics offers the 5500 series in multiple connection combinations for hydraulic and fluid-transfer systems.
Male NPTF × Male NPTF Connection
The 5500 uses a Male NPTF × Male NPTF connection. Both ends feature external tapered pipe threads, allowing the elbow to connect female NPTF ports, fittings, valves, manifolds, or other compatible components.
Before ordering, confirm both connection sizes and thread type to ensure the fitting matches the existing hydraulic assembly.
90° Elbow Design
The 90° configuration changes the direction of the connected hydraulic line while keeping the assembly compact. This makes the 5500 useful when a straight fitting would create unnecessary routing length or make line positioning difficult.
A properly positioned elbow can also help create a cleaner hydraulic layout and reduce unnecessary bends in connected hose or piping.
High-Strength Carbon Steel Construction
The 5500 is listed with high-strength carbon steel construction, providing a solid fitting body for demanding hydraulic and fluid-transfer connections. The page also identifies a corrosion-resistant coating to help protect the fitting surface during service.
NPTF Threaded Connection
The 5500 uses NPTF tapered pipe threads. Correct thread identification is important when replacing or adding fittings to an existing hydraulic system.
Make sure the mating components are compatible NPTF connections and verify the required thread size before installation.
Compact Hydraulic Line Routing
The 90° body allows the connection to turn the hydraulic line without forcing the entire assembly into a straight-line configuration. This can be especially useful around pumps, valves, cylinders, manifolds, and other components where available installation space is limited.
The 5500 design helps keep hydraulic routing organized while providing a direct threaded connection between compatible components.
Multiple Connection Combinations
Gear House Hydraulics lists the 5500 in multiple Male NPTF × Male NPTF combinations, including configurations such as 1/4 × 1/8, 1/2 × 1/4, 3/4 × 1/2, 1 × 3/4, 1-1/2 × 1-1/2, and larger combinations up to 1-1/2 × 1-1/2 and 2 × 2 as shown on the collection page.
Select the configuration based on the actual female NPTF ports or fittings being connected.
Built for Hydraulic Connections
The 5500 is designed for hydraulic and fluid-transfer assemblies where a dependable 90° threaded connection is required. The collection page identifies use across hydraulic hose assemblies, pumps, valves, cylinders, industrial piping, agricultural machinery, construction equipment, and mobile hydraulic equipment.
Its compact elbow shape makes it a practical choice when hydraulic lines need to change direction while maintaining an organized installation.
Installation Considerations
Before installing the 5500:
- Confirm both mating connections are compatible NPTF threads.
- Verify the required male thread sizes.
- Clean the threads before assembly.
- Use the appropriate thread-sealing method for the hydraulic system.
- Align the elbow before final tightening.
- Avoid excessive tightening that could damage threads or connected components.
- Confirm the finished assembly meets the pressure and service requirements of the system.
Proper thread matching and installation are essential for maintaining a dependable hydraulic connection.
Why Choose the 5500?
The 5500 NPTF Pipe 90° Elbow combines a straightforward threaded configuration with a compact 90° design for practical hydraulic routing.
Key features include:
- Male NPTF × Male NPTF connection
- 90° elbow configuration
- High-strength carbon steel construction
- Corrosion-resistant coating
- Precision-machined NPTF threads
- Multiple connection combinations
- Compact directional routing
- Suitable for hydraulic and fluid-transfer assemblies
Select the Right 5500 Configuration
Choosing the correct 5500 starts with identifying the female NPTF ports that need to be connected. Match each male end of the elbow to the corresponding female thread size.
For reducing configurations, verify the larger and smaller connection sizes before placing the order. For example, a 5500-08-06 configuration connects a larger 1/2-inch male NPTF end to a smaller 3/8-inch male NPTF end.
Checking the connection specifications before installation helps prevent thread mismatch and unnecessary replacement.
Gear House Hydraulics 5500 NPTF Elbow
Gear House Hydraulics supplies the 5500 series for hydraulic and fluid-transfer connection requirements. With multiple Male NPTF × Male NPTF configurations available, the fitting provides a practical solution for changing hydraulic line direction while keeping the connection compact.
Choose the correct size and thread configuration for your assembly and build a cleaner hydraulic connection with the 5500 NPTF 90° elbow.
