2706-LN JIC to Pipe Bulkhead with Locknut | Hydraulic Adapter Fittings
Description

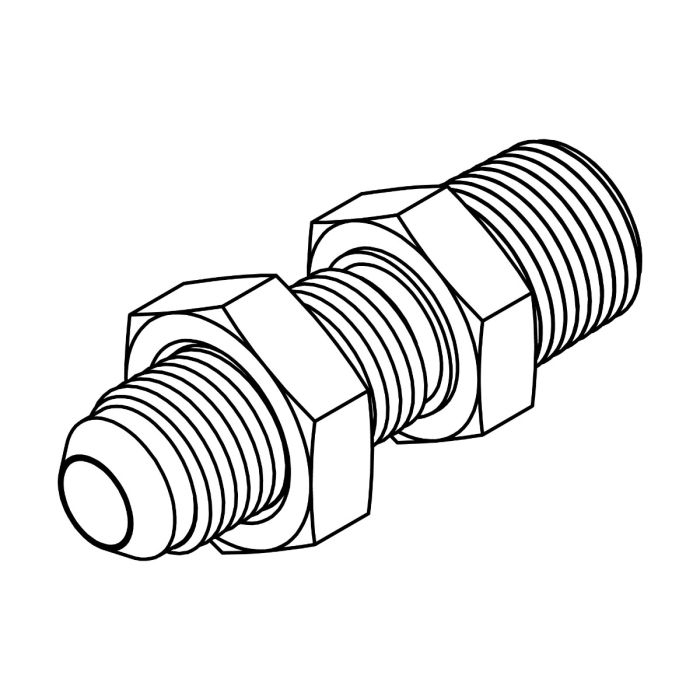

The 2706-LN JIC to Pipe Bulkhead with Locknut series consists of precision-engineered hydraulic fittings designed to transition from a JIC 37° flare connection to a pipe-threaded connection through a panel, enclosure wall, or equipment bulkhead. With an integrated locknut, these bulkhead adapters provide a secure, mechanically stable mounting point for high-pressure fluid systems.
Applications
2706-LN JIC to Pipe Bulkhead with Locknut fittings are widely used in:
- Machine tools and manufacturing equipment
- Agricultural and earth-moving machinery
- Instrumentation and control fluid systems
- Chemical processing hydraulic circuits
- Industrial fluid power systems
- Mobile hydraulic equipment
These fittings support secure routing of fluid lines through panels or frames while enabling easy assembly and maintenance.
Pressure Ratings
Suitable for extreme pressure applications, including those near or above 5000 PSI when properly sized and installed
Material Specifications
Carbon Steel (standard)
- Bar Stock: 12L14, 1045
- Cold Formed: 1010
Stainless Steel (optional)
- Type 316
Each bulkhead fitting is manufactured in either carbon steel or stainless steel, depending on the selected variant.
Plating & Finish
- Clear Zinc Trivalent plating
- Passivated for enhanced corrosion resistance
- Provides durable protection for industrial and outdoor hydraulic environments
Key Features & Benefits
- Designed to convert JIC 37° flare connections to pipe threads through a bulkhead or panel
- Locknut ensures secure mounting and mechanical stabilization
- Reliable sealing performance in high-pressure hydraulic systems
- Suitable for both industrial and mobile fluid power applications
- Corrosion-resistant plating improves longevity
Typical Use Cases
- Routing fluid lines through machine frames or panels
- Hydraulic manifold bulkhead installations
- Mobile equipment requiring secure panel mount connections
- Instrumentation and control system bulkhead interfaces
- Industrial fluid distribution networks
Installation Notes
- Verify correct panel/bulkhead hole size and thickness before installation
- Match correct JIC and pipe thread sizes prior to assembly
- Orient fitting for final routing before locking with the nut
- Use recommended thread sealant (e.g., PTFE tape or pipe compound) where appropriate
Industries Served
- Industrial manufacturing
- Heavy equipment and construction
- Agriculture hydraulics
- Instrumentation control systems
- Chemical and process hydraulics
Bulkhead adapters are ideal when hydraulic connections must pass through structural surfaces while maintaining fluid integrity, strength, and serviceability.
