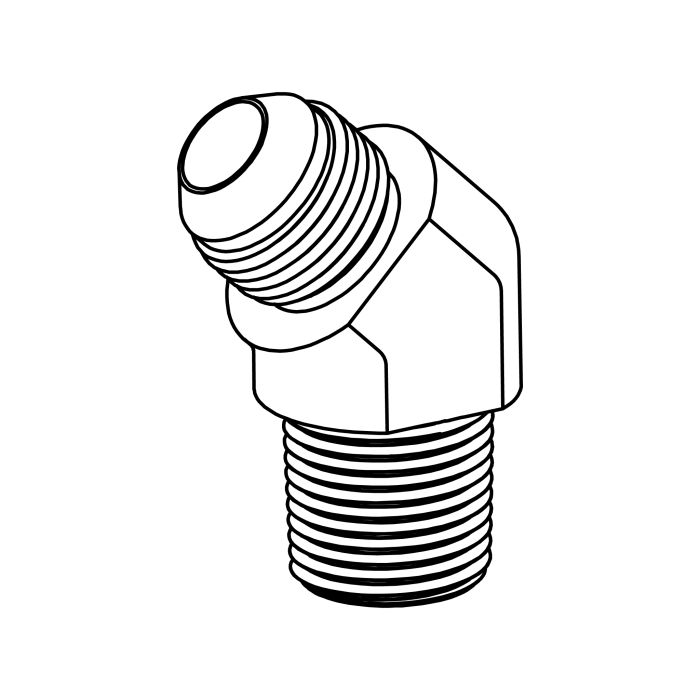

Gear House Hydraulics has the full range of 2503 JIC to Pipe Elbow 45° fittings for connecting 37° Male JIC fittings with Male NPT Pipe Threads and for creating a 45-degree turn in hydraulic and fluid transfer systems. These 45-degree JIC to Pipe Elbows improve hose routing and installation flexibility in applications where straight fittings are not suitable.
Built of high quality carbon steel, our Male JIC x Male NPT 45 Degree Adapters offer durability, corrosion resistance and reliability in demanding environments. The 37 degree flare connection provides a metal-to-metal connection, while the NPT thread connects with compatible pipe-threaded hydraulic equipment.
These JIC to NPT 45-degree elbows find wide application in hydraulic hose assemblies, pumps, valves, cylinders, agricultural machinery, construction equipment and industrial fluid power systems. The 45-degree elbow design helps improve hose routing and makes installation easier where a straight connection is not the right fit.
Uses
- Hydraulic hose assemblies
- Hydraulic cylinders
- Valves and pumps
- Construction machinery
- Farm equipment
- Industrial fluid power applications
- Mobile hydraulic equipment
Characteristics
- 37° Male JIC x Male NPT connection
- 45° elbow design
- Constructed of high-strength carbon steel
- Corrosion-resistant protective coating
- Designed for hydraulic connection applications
- Suitable for demanding hydraulic systems
- Multiple sizes available
- Helps improve hose routing
Why Choose a 45° JIC to Pipe Elbow?
A straight JIC to pipe adapter works well when both connection points are aligned. However, hydraulic systems often have limited space or components positioned at an angle. The 2503 JIC to Pipe Elbow 45° provides a directional change while also connecting two different fitting styles.
The 45° angle offers an alternative between a straight fitting and a sharper 90° elbow. This can be useful when the hydraulic hose or line needs to follow a more suitable routing path around nearby components.
For many assemblies, selecting the correct fitting angle is just as important as selecting the correct thread type. The 2503 JIC to Pipe Elbow 45° combines the required JIC-to-NPT transition with a 45° elbow configuration in one hydraulic adapter.
Understanding the JIC and NPT Connection Sides
The two ends of this fitting should be checked separately before ordering. One side features a 37° Male JIC connection, while the other side uses a Male NPT pipe thread.
The JIC end should match a compatible female JIC connection, and the NPT end should match the appropriate female NPT threaded port or component. Because JIC and NPT are different connection types, customers should not assume that the fittings are interchangeable.
Checking the existing fitting, thread type and required size before ordering can help ensure the correct 2503 JIC to Pipe Elbow 45° is selected.
Selecting the Right 2503 JIC to Pipe Elbow 45°
Before choosing an adapter, confirm these important details:
- Required JIC size
- Required NPT thread size
- 37° JIC flare connection requirement
- Need for a 45° directional change
- Available space for hose and line routing
- Overall requirements of the hydraulic assembly
The collection includes multiple size options, making it important to match both ends of the fitting to the existing hydraulic connection.
Frequently Asked Questions
What does the 2503 JIC to Pipe Elbow connect?
The 2503 JIC to Pipe Elbow 45° connects a compatible 37° Male JIC connection with a compatible Female NPT threaded connection.
Why choose a 45° elbow instead of a straight adapter?
A 45° elbow is useful when the hydraulic line needs to change direction. It can provide better routing flexibility where a straight adapter does not suit the equipment layout.
Is the 2503 fitting a JIC-to-JIC adapter?
No. This fitting is configured as Male JIC x Male NPT, connecting two different fitting and thread types.
How do I choose the correct size?
Check the required JIC size on one side and the required NPT thread size on the other side. Both connection requirements should match the existing hydraulic assembly.
Explore the range of 2503 JIC to Pipe Elbow 45°, Hydraulic 45 Degree Elbow Adapters and JIC Hydraulic Elbow Fittings from Gear House Hydraulics to find the right connection and routing solution for your hydraulic application.
