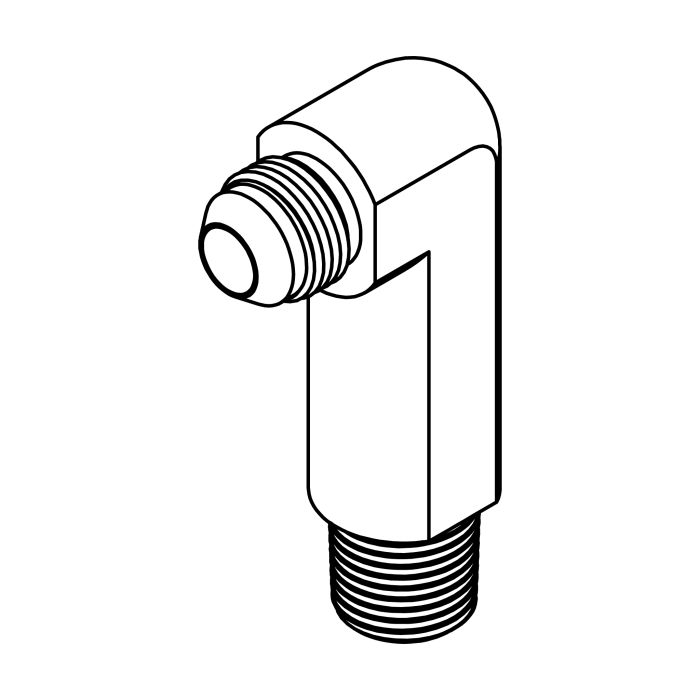

2501-LL JIC to Pipe Extra-Long Elbow 90°

2501-LL JIC to Pipe Extra-Long Elbow 90° for Extended Reach

Some hydraulic assemblies need more than a standard elbow to achieve the right connection position. The 2501-LL JIC to Pipe Extra-Long Elbow 90° from Gear House Hydraulics is designed for applications where a JIC-to-pipe transition, a 90° change in direction, and additional reach are needed in the same connection.

Its extra-long body is the defining feature of this fitting. Compared with a standard or long elbow, the 2501-LL JIC to Pipe Extra-Long Elbow 90° provides additional clearance and positioning flexibility where surrounding components, structural obstacles, or restricted routing paths affect installation.

Fitting Type: JIC to Pipe Extra-Long Elbow

End 1: JIC 37° Flare Connection

End 2: Pipe Thread

Configuration: 90° Extra-Long Elbow

Material: Steel

Steel Materials: 12L14, 1045, and Cold Formed 1010

Plating: Clear Zinc Trivalent

Finish: Passivated

Working Pressure: Up to 5,000 PSI

Extra Length Where Standard Elbows Fall Short

The purpose of the 2501-LL JIC to Pipe Extra-Long Elbow 90° is not simply to turn a hydraulic line. Its extended body provides more reach between the two connection points, making it useful where a standard elbow does not provide enough clearance.

This can help when hydraulic lines need to route around obstructions or when a connection must be positioned farther away from adjacent components. Instead of combining several fittings to create additional spacing, an extra-long elbow can provide the required transition and directional change in one component.

For equipment with tight or restrictive layouts, this design gives installers more flexibility when positioning compatible hose or tube connections.

Bridging JIC and Pipe-Threaded Connections

The 2501-LL JIC to Pipe Extra-Long Elbow 90° transitions between a JIC 37° flare connection and a pipe-threaded connection. Because these are different connection styles, both ends should be identified individually before selecting the correct fitting.

The size of the JIC connection and the required pipe thread should match the existing hydraulic assembly. The 90° orientation should also suit the intended routing path.

Gear House Hydraulics offers this collection in multiple size combinations, giving customers options for different connection requirements.

Built for High-Pressure Hydraulic Applications

The 2501-LL JIC to Pipe Extra-Long Elbow 90° is intended for high-pressure hydraulic applications with listed working pressures up to 5,000 PSI. It is suitable for machine tools, manufacturing equipment, agricultural and earth-moving machinery, instrumentation and control fluid circuits, chemical processing systems, and industrial or mobile fluid power applications.

The fitting is particularly relevant when both connection compatibility and physical routing must be considered. In mobile equipment or complex machinery, the extra reach can help position a line around nearby components while maintaining the required 90° direction.

Steel Construction and Protective Finish

The collection lists steel construction, including 12L14 and 1045 bar stock and cold-formed 1010. Clear Zinc Trivalent plating and passivation are also specified for the fitting.

These details make the 2501-LL JIC to Pipe Extra-Long Elbow 90° a focused option for demanding hydraulic and industrial environments. However, the correct fitting should always be selected according to the complete assembly, including connection style, size, pressure requirements, and routing needs.

When an Extra-Long Elbow Is the Right Choice

Before choosing a 2501-LL JIC to Pipe Extra-Long Elbow 90°, first confirm that the assembly requires a compatible JIC-to-pipe connection. Then check whether the installation needs more reach than a standard or long elbow can provide.

Review the JIC connection size and pipe-thread requirement separately, and consider the location of surrounding components. The extra-long design is most useful when clearance, extended positioning, or routing around obstacles is a key part of the installation.

The 2501-LL JIC to Pipe Extra-Long Elbow 90° collection from Gear House Hydraulics provides a dedicated solution for hydraulic assemblies that need extended reach, a 90° directional change, and a transition between JIC and pipe-threaded components. Choose the appropriate size combination for your specific connection and routing requirements.
